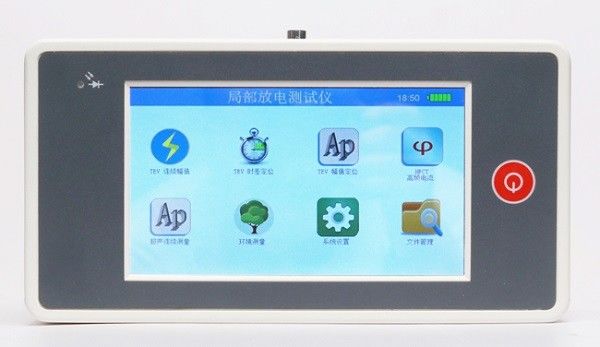

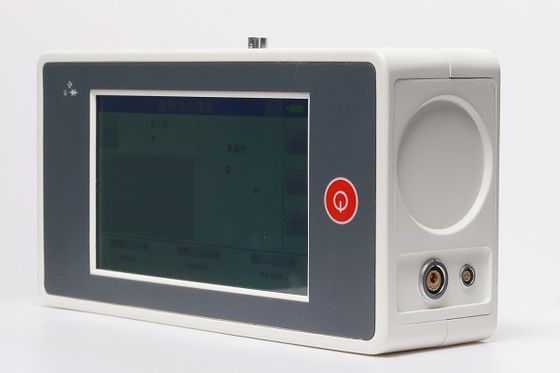

Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor

Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor
Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor

Large Image :  Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCPD002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 20-25 Days
Payment Terms: T/T
Supply Ability: 100 set
Detailed Product Description
Name: Partial Discharge Detector Model: MCPD002
Type: Hand-hold Sensor: UHF AE TEV HFCT, Ultrasonic Sensor, Built-in TEV Sensor
Test Frequency Band: 10KHZ-300KHZ Operation: Touch Screen
High Light:

10KHZ 4-20mA Portable Partial Discharge Test Kit

,

4-20mA 10KHZ Partial Discharge Test Kit

,

4-20mA 10KHZ partial discharge equipment



Partial Discharge Detector MCPD002



Main Features

1) 7”LCD display, touch screen
2) Partial discharge test and location of GIS, Switchgear, Cable tray, cable joint, insulators & LBS
on transmission line, and etc
3) Test result can show discharge strength, discharge phase, history data, etc
4) With multi testing way including TEV, ultrasonic, HFCT, infrared temperature test and etc.
5) Multi independent test channels showing on same screen at same time, with extension function
6) Inbuilt solid state SSD storage not less than 256G for storing data and patterns
7) With test data management, test object management and test task management function,
convenient for data analysis
8) Can test ambient temperature and humidity of test object
9) 4-20mA analog output, USB and Ethernet port for data transferring
10) With sensor self-testing function, include self testing time difference and location function
11) With diagnose mode, display & analysis and diagnose of partial discharge type then automatic
generating test report.
12) Independent double channels noise sensors
13) In-built function-self-tester, and more convenient for use
14) With rechargeable lithium battery, 3.7V/21Ah, continuously working for 8 hours after one time
full charging
15) USB interface and RJ45 Ethernet port
16) Optional accessories includes: TEV sensor, external extended microphone sensor,
HFCT sensor, noise sensor, non-contact type infrared temperature sensor, battery charger etc.


Technical Index



1. TEV measurement



Item Specification
Sensor capacitance type
Range 0-60bBmV
Frequency range 3-100MHz
Resolution 1dB
Accuracy ±1dB
Maximum impulse/cycles qty 1400
Minimum impulse rate 10Hz



2. Ultrasonic Measurement



Item Specification
Range -7dBuV~68dBuV
Resolution 1dB
Accuracy ±1dB
Sensor sensitivity -65dB (0dB=1V/ubar RMS SPL)
Sensor center frequency 40kHz
Frequency range 20~100kHz
Sensor diameter 16mm
Heterodyne frequency 38.4kHz



3. HFCT measurement



Item Specification
Sensor type HFCT
Range 0pC~25000pC
Minimum impulse rate 10Hz
Frequency response 100kHz~20MHz
Inner diameter 45mm(customization available)
Outer diamete 107 mm(customization available)
Output impedance 50Ω
Output interface BNC connector



4. Temperature measurement



Item Specification
Sensor type Infrared sensor
Range -20℃~150℃
Accuracy ±1% or 1℃
Response wave length 8~14um
Distance coefficient 15:1
Sending rate 0.95
IP degree 65
Humidity 0~90% RD
Size: Φ20X90



5. Size & Weight: 240mm×125mm×60mm / 1.2kg



6. Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC
