| Product: | Multi Function Partial Discharger Tester | Model: | MCPD004 |
|---|---|---|---|
| Warranty: | 1 Year | Frequency Range: | 3-100MHz |
| Communication Port: | USB, RJ45 Ethernet, | Rechargeable Battery: | 3.7V/21AH |
| High Light: | 100MHz Partial Discharge Test Equipment,GIS Partial Discharge Test Equipment,LCD partial discharge measurement kit |
||

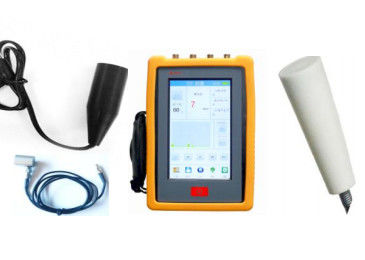

Partial Discharger Tester MCPD004
Adopting advanced and modern technology and provide better user experience
Partial Discharge Test Equipment Multifunction Partial Discharger Tester Blueteeth
Technical Parameters
1. TEV measurement
| Item | Specification |
| Sensor | capacitance type |
| Range | 0-60bBmV |
| Frequency range | 3-100MHz |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Maximum impulse/cycles qty | 1400 |
2. Ultrasonic Measurement
| Item | Specification |
| Measuring Range | -7dBuV～68dBuV |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Sensor sensitivity: | -65dB (0dB=1V/ubar RMS SPL) |
| Sensor center frequency: | 40kHz |
| Frequency range | 20～100kHz |
| Sensor diameter: | 16mm |
| Heterodyne frequency: | 38.4kHz |
3. AE contact-type ultrasonic measurement
| Item | Specification |
| Range | 0dBuV～68dBuV(0.001mv～1.000mv) |
| Resolution | 1dB |
| Measurement Accuracy | ±1dB |
| Sensor sensitivity | -65 dB (0 dB=1 volt/μbar RMS SPL) |
| Frequency range | 0～200 kHz |
4. Size & Weight: 235mm*145mm*46mm / 1.5KGS
5. Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC
More optional: external extended microphone sensor, HFCT sensor,UHF sensor, non-contact type
infrared temperature sensor, ultrasonic focuser,
