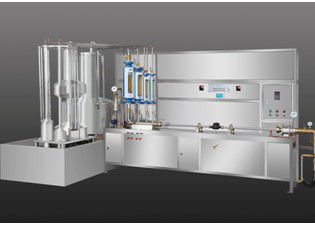

Water Meter Test Bench
1) Widely used in water meter factory or lab
2) Compliance with relative IEC standard
Structure & Features
1) Comprises of:
platform (totally stainless steel), multistage water pump (11kW, low noise), flow meters, clamps,
water tank (2.2 m3=2200L), flow regulator (various frequency control box, 11kW), measuring
system (volume method), 1m3 buffer tank, valve, high tension soft pipe, filter, anti-vibrator,
flow meter base, switches and etc.
2) Equipped with three different volume container namely 10L, 50-100L and 500L
3) Water meter withstand pressure test: 2MPa
4) Manual, Semi-automatic, or Fully automatic (optional)
5) PC software provided (optional)
6) PLC control (optional)
Function & Technical Index
Accuracy of metering | ≤±0.2% |
Accuracy of volume container | 0.04% |
Resolution | 0.1% |
Specs of water meter under test | ¢15mm,¢20mm, ¢25mm, ¢40mm, ¢50mm |
With below instantaneous flow meters:
LZB-80, flow range: 7-31.25m3/h
LZB-50, flow range: 0.2-6.3m3/h
LZB-25, flow range: 0.02-0.5m3/h
LZB-15, flow range: 0.004-0.08m3/h
Glass rotor flow counter
With 5 pcs stainless steel ball valve, 8 pcs brass ball valve, and 3 pcs pressure indication meter
Numbers of water meter to be tested
15mm (meter length 165mm) | 20PCS |
20mm (meter length 195mm) | 18PCS |
25mm (meter length 225mm) | 16PCS |
40mm (meter length 245mm) | 2PCS |
50mm (meter length 280mm) | 2PCS |
2PC clamps, 2PCS clamp switch, 3PCS drain switch of volume container and 1PC flow meter base.
Working pressure: 0-35-0.5MPa
Power supply: three phase 230V±10% AC, 50HZ
Size & Weight
Water Tank | 2400*1160*800mm |
Working platform | 3000*600*750mm |
Package size of volume container and water tank | 2600*1300*2230mm |
Package size of test bench | 3650*750*1500mm |
Total Weight | 1250KG |
