Portable 0.05 Class Transformer Ratio Tester For Field Examianation

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

Portable 0.05 Class Transformer Ratio Tester For Field Examianation

Portable 0.05 Class Transformer Ratio Tester For Field Examianation
Portable 0.05 Class Transformer Ratio Tester For Field Examianation

Large Image :  Portable 0.05 Class Transformer Ratio Tester For Field Examianation

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCVT-01D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 30-45 days
Supply Ability: 20 Sets Per Month
Detailed Product Description
Application: Field Testing Test Function: Ratio, Ratio Error, Phase Error, Polarity...etc
Accuracy: 0.05% (Ratio Test) Ratio Test Range: 1-40000
Dimension: 367*292*150mm Weight: <8kgs
High Light:

0.05 Class Transformer Ratio Tester

,

Portable Transformer Ratio Tester

,

Field CT PT Testing Equipment

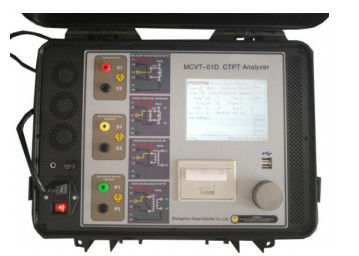

Portable CT PT Test Equipment MCVT-01D



Major Technical Parameters

Item Description
Power Supply AC220V±10% 50/60HZ
Output 0-180Vrms, 12Arms, 36A (peak value)
Voltage test accuracy ±0.2%
Ratio error test (metering CT) ±0.2%
Secondary resistance range/accuracy 0~300Ω / 0.2%±2mΩ
Secondary burden range/accuracy 0~1000VA / 0.2%±0.02VA
Phase test range/accuracy 0-360°/ ±2min, resolution 0.5min
PT ratio range/accuracy 1-40000 / ±0.05%
CT ratio range/accuracy 1-40000 / ±0.05%
Dimension & Weight Size:367mm × 292mm × 150mm ,weight:<8kgs (including accessories)





































Features



1. CT test

    Excitation (VA) characteristic

    Ratio test

    Polarity Test

    Secondary winding resistance test

    Secondary burden test

    Ratio error

    Phase error test

2. PT test (electro-magnetic type)

    Excitation (VA) characteristic

    Ratio Test

    Polarity test

    Secondary winding resistance test

    Secondary burden test

    Phase error test

3. Automatically provide CT&PT parameters including knee point voltage/current, 10% & 5% error curve,

    ALF (accuracy limit factor), FS (Instrument security factor), secondary time constant (Ts), Remanence

    coefficient (Kr), saturated inductance, and etc…

4. Adopt low frequency method test principle and can perform the test of CT with knee point up to 30KV

5. CT admittance test

6. Adopt popular square wave method and can get more perfect excitation curve

7. Big storage space can ensure saving of more than 100000 test data.

8. Directly generate Excel report after finishing test, also can directly printer

9. Simple operation: one-key finish CT winding resistance test & excitation test & ratio test & polarity test;

    except burden test, other tests all adopt same wiring
