360KV CT PT Test Equipment , Utility Instrument Transformer Test Set

Name: 360KV CT PT Test Equipment , Utility Instrument Transformer Test Set
Brand: HNMC
SKU: HEW-30
Price: 1.00 USD
Availability: InStock
Rating: 5 (188 reviews)

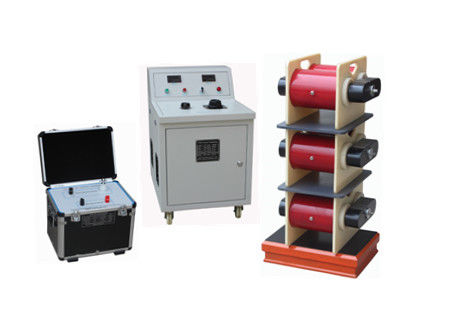

Large Image : 360KV CT PT Test Equipment , Utility Instrument Transformer Test Set

Product Details:

Place of Origin:	China
Brand Name:	HNMC
Model Number:	HEW-30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Package
Delivery Time:	30-45 days
Payment Terms:	T/T, L/C
Supply Ability:	5 sets per month

Contact Now

Detailed Product Description

Application:	Test CVT Until 500/√3kV Level	Rated Frequency:	50/60HZ
Rated Output Voltage:	0-360KV	Rated Capacity:	360KVAR
Max Output Current:	1A	User:	Lab, Utility
High Light:	360KV CT PT Test Equipment , Resonance CT PT Test Equipment , 360KV Utility Instrument Transformer Test Set

360KV Resonance High Voltage Source CVT Test System HEW-30

Testing system configuration

No	Description
1	Testing Bench
2	Exciting Transformer
3	Reactor
4	Testing Cable
5	Accessories

General specification:

Product Application:	The system is a voltage generator, and used for Capacitive PT accuracy testing with from 110/√3kV to 500/√3kV voltage level
Rated input voltage:	AC 220V
Rated output voltage:	AC 0~360kV
Rated Capacity:	360kvar
Max output current:	AC 1A
Frequency:	50Hz
Operating Condition:	Temperature: -10^oC ～ +50 ^oC
Operating Condition:	RH: up to 85% (max. 90%, non-condensing)

Technical Specification of Control Bench

Input Voltage:	AC 220V±10%, 50Hz, Single-Phase
Input Current:	AC 0-120A
Rated Capacity:	30kVA
Output Voltage:	AC 0-250V
Output Current:	AC 0-120A
Output Voltage Adjustment:	Provided the Coarse adjustment & Fine adjustment
Protection function:	Provided overcurrent & overvoltage protection
The Bench Structure:	Horizontal structure
Power Indicator:	LED, Output current, Output voltage

Technical Specification of Reactor

Rated Capacity:	60kVA/stage
Rated Voltage:	AC 60kV/stage
Rated Current:	AC 1A/stage
Inductance Range:	125H-500H/stage
Insulation:	Epoxy resin casting

Technical Specification of Exciting Transformer

Input Voltage:	AC 0-250V, 50Hz
Output Voltage and Output Current::	AC 10kV/1.5A, AC 20kV/1.5A, 50Hz
Rated Capacity:	30kVA
Insulation:	Dry type
Product Structure:	Aluminum alloy box, Portable structure
