High Voltage Source CVT Testing , 60HZ Capacitive Voltage Transformer Testing

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

High Voltage Source CVT Testing , 60HZ Capacitive Voltage Transformer Testing

High Voltage Source CVT Testing , 60HZ Capacitive Voltage Transformer Testing
High Voltage Source CVT Testing , 60HZ Capacitive Voltage Transformer Testing

Large Image :  High Voltage Source CVT Testing , 60HZ Capacitive Voltage Transformer Testing

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: HEW-20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30-45 days
Supply Ability: 10 sets per month
Detailed Product Description
Rated Output: 0-200KV Rated Capacity: 200KVA
Rated Input: 380V Maximum Output Current: 1A
Rated Frequency: 50 Or 60HZ Insluation: Oil
Highlight:

60HZ High Voltage Source CVT Testing

,

60HZ 200KVA CVT Testing

,

60HZ Capacitive Voltage Transformer Testing



200KV High Voltage Source & Control Cabinet HEW-20 CVT Test System

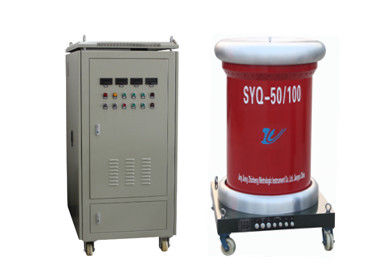

Testing system configuration





No Product Description
1 Control Cabinet
2 Testing Transformer
3 Testing Cables





General Specification



Product Application: The system is a voltage generator system, and used for 110/√3kV and 220/√3kV accuracy testing system of the Inductive Voltage Transformer (IVT) and CVT with capacitance range from 0.004uF-0.02uF
Rated input voltage: AC 380V
Rated output voltage: AC 0~200kV
Rated Capacity: 200kVA
Max output current: AC 1A
Frequency: 50Hz
Operating Condition: Temperature: -10oC ~ +50 oC
RH: up to 85% (max. 90%, non-condensing)





Technical parameter of control cabinet





Input Voltage: AC 380V 50Hz, Single-phase
Output Voltage: AC 0-600V
Rated Capacity: 200kVA
Rated output current: AC 333A
Output Voltage: Coarse adjustment & Fine adjustment
Struture of Voltage Regulator:

Coarse Voltage Regulator: Column struture

Fine Voltage Regulator: Annular struture

Adjustment Model:

By Electrical

(Coarse-adjustment “Up” and “Down, Fine-adjustment “Up” and “Down )

Protection functions: provided over-current and over-voltage protection
Sampling Volt-Meter: LED, AC 0-200.00kV, ±0.2CL
Power Display: Output Current, Output Voltage





Technical parameter of Test Transformer



Input Voltage: AC 0-600V, 50Hz
Rated capacity: 200kVA
Rated output voltage: AC 200kV
Output current: AC 1A
Measuring voltage: AC 0-100V (Voltage Ratio: 200kV/100V)
Insulation: Oil
Dimension (~): Φ1300mm x 2000mm
Weight (~): 2.6Ton
