50Hz Manual CT PT Test Equipment With Burden Box Collection

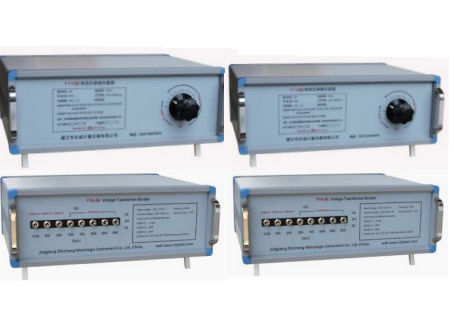

Large Image : 50Hz Manual CT PT Test Equipment With Burden Box Collection

Product Details:

Place of Origin:	China
Brand Name:	HNMC
Model Number:	FY series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Package
Delivery Time:	30-45 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Operation Mode:	Manual	Rated Current:	1A, 5A
Rated Voltage:	110V, 100V, 110V/√3V, 100V/√3V	Operation Ragne:	20-120%Vn, 1-120%In
Rated Frequency:	50 Or 60HZ	Power Factor:	0.8, 1.0
Highlight:	50Hz CT PT Test Equipment , Manual CT PT Test Equipment , 1A ct pt test set

Accuracy Class 3 CT PT burden box collection

FY47 CT Burden

Technical Parameters

Rated Current:	1A
Power Factor and Rated Burden:	COSΦ=0.8:0.625,1.25,2.5,3.75,5,6.25,7.5,10,12.5,15,20,25,30,40,50,60VA COSΦ=1.0: 0.625,1.25,2.5,3.75,5VA
Accuracy Class:	±3%
Operation Range:	(1%-120%). In
Test Cable Resistance:	0.06Ω
Frequency:	50Hz or 60HZ
Operation Model:	By Manual
Withstand Voltage:	2kV/1min
Insulation:	Air

FY49 CT Burden

Technical Parameters

Rated Current:	5A
Power Factor and Rated Burden:	COSΦ=0.8: 2.5,3.75,5,6.25,7.5,10,12.5,15,20,25,30,40,50,60 VA COSΦ=1.0: 2.5,3.75,5,6.25, 7.5, l0VA
Accuracy Class:	±3%
Operation Range:	(1%-120%). In
Test Cable Resistance:	0.06Ω
Frequency:	50Hz or 60HZ
Operation Model:	By Manual
Withstand Voltage:	2kV/1min
Insulation:	Air

FY95 PT Burden

Technical Parameters

Rated Voltage:	100V, 110V
Power Factor:	COSΦ=0.8
Rated Burden:	1.25VA, 2.5VA, 5VA, 10VA, 20VA, 40V A,50VA, 80VA, 100VA
Totall Burden:	308.75VA
Accuracy Class:	±3%
Operation Range:	(20%-120%). Vn
Frequency:	50Hz or 60HZ
Operation Model:	By Manual
Withstand Voltage:	2kV/1min
Insulation:	Air

FY95 PT burden

Technical Parameters

Rated Voltage:	100/√3V, 110/√3V
Power Factor:	COSΦ=0.8
Rated Burden:	1.25VA, 2.5VA, 5VA, 10VA, 20VA, 40V A,50VA, 80VA, 100VA
Totall Burden:	308.75VA
Accuracy Class:	±3%
Operation Range:	(20%-120%). Vn
Frequency:	50Hz or 60Hz
Operation Model:	By Manual
Withstand Voltage:	2kV/1min
Insulation:	Air
