| Accuracy Class: | 0.05, 0.02, 0.01 | Stages: | Double Stages |
|---|---|---|---|
| Voltage: | 10KV/35KV | Rated Secondary Capacitor: | 0.2VA、0.07VA CosФ=1.0 |
| High Light: | 10KV 0.01 Class Current Potential Transformer,0.01 Class 0.2VA Current Potential Transformer,0.01 Class Ct Pt Transformer |
||

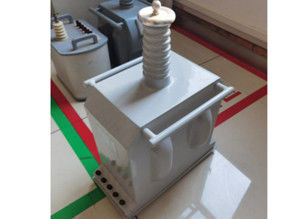

0.01 Class Double Stage Standard PT with voltage Generator
Technical Parameter
| Rated voltage ratio | 6,10,35Kv/100V, 6,10,35/√3Kv /100/√3V |
| Rated secondary capacity | 0.2VA,0.07VA CosФ=1.0 |
| Accuracy class | 0.05, 0.02, 0.01 |
| withstand voltage level | Induction withstand voltage 1.2Un/1min; Secondary to Ground 2KV/1min |
| Rated frequency | 50 or 60HZ |
Feature
1) high accuracy and high voltage level
2) Can test 0.2 class or higher voltage transformer with 35kv,35/√3Kv,10kv,10/√3Kv,
3) 0.2VA secondary burden (at 100V); 0.07VA secondary burden (at 100/√3V)
4) Double stages with voltage generator
5) Stable and reliable output
