Rated Current: | 1A, 5A | Working Range: | 1-120% |
---|---|---|---|
Rated Frequency: | 50 Or 60HZ | Display: | LCD, Touch Screen |
High Light: | 60HZ CT PT Test Equipment,LCD CT PT Test Equipment,1A 60HZ pt ct test |

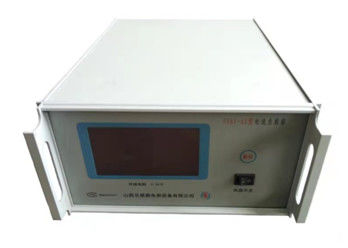

Intelligent Type Current Transformer Burden Box CT Burden FY61A
Technical Parameter
Rated Current | 5A, 1A |
Operating Range | 1-120% |
Rated Impedance (Ω) |
COSφ= 0.8 0.1;0.15;0.2;0.3;0.4;;0.6;1.0;1.2; 1.6; 2.4; 3.2 COSφ= 1.0 0.1;0.15;0.2;0.3;0.4 |
Rated Frequency | 50/60HZ |
Basic Error | |
Active | (±3+0.003*100/R)%·R(Ω) |
Reactive | (±3+0.003*100/X)%·X(Ω) |
Test voltage: 2KV One minute |
Customization is available.
Feature
1) Work as secondary load during CT testing
2) Big LCD, clear display
3) Touch screen, convenient for simple operation
4) Can test all three phases at the same time
5) Can make wiring for all phases at the one time
6) Accuracy:3%
7) Fully automatic
8) Can provide communcaiton protocol
Note:
1. Open circuit is not allowed during testing
2. In order to avoid the cause of impedance change, ont knock coil installation place in burden box.
3. Working condition:+10℃—+40℃ / RH 30-85%,indoor
