| Accuracy Class: | 0.05 Or Better | Application: | Lab, Worksite, CT PT Manufacturer |
|---|---|---|---|
| Rated Primary Voltage: | 6-35KV | Rated Secondary: | 100V, 100/√3V, 110V, 110/√3V |
| High Light: | 35KV Instrument Transformer CT And PT,0.05 Instrument Transformer CT And PT,Lab Standard Voltage Transformer |
||

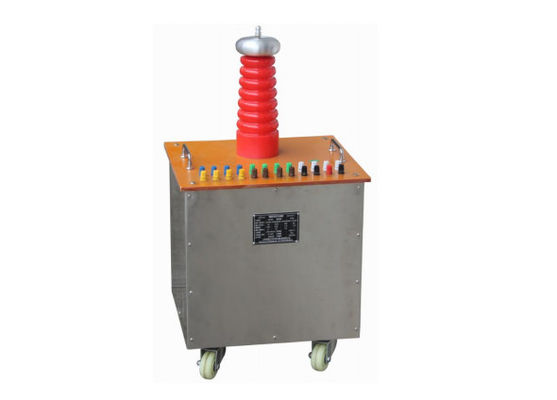

0.05 Class Standard PT with Voltage Generator 35KV HJS35
Technical Index
| Rated Primary Voltage: |
6kV(6/√3kV), 10kV(10/√3kV), 15kV(15/√3kV) 22kV(22/√3kV), 35kV(35/√3kV) |
| Rated Secondary Voltage: | 100V, 100/√3V, 110V, 110/√3V |
|
Rated Voltage Ratio: |
6/0.1kV, 6/√3/0.1/√3kV, 6/0.11kV, 6/√3/0.11/√3kV 10/0.1kV, 10/√3/0.1/√3kV, 10/0.11kV, 10/√3/0.11/√3kV 15/0.1kV, 15/√3/0.1/√3kV, 15/0.11kV, 15/√3/0.11/√3kV 22/0.1kV, 22/√3/0.1/√3kV, 22/0.11kV, 22/√3/0.11/√3kV 35/0.1kV, 35/√3/0.1/√3kV, 35/0.11kV, 35/√3/0.11/√3kV |
| Accuracy Class: | 0.05% or higher accuracy class avavailable |
| Rated Secondary Burden: | 0.2VA (100V, 110V), 0.07VA (100/√3V, 110/√3V) |
| Power Factor: | COSΦ=1.0 |
| Operating Range: | (20%-120%). Un |
| Frequency: | 50Hz |
| Insulation: | Epoxy resin casting |
| Products Structure: | With voltage source |
| Input Voltage of Voltage Source: | AC 0-250V |
Features
1. Used as a standard during PT testing
2. High accuracy and stability
3. Small excitation current
4. Small heat generation and without noise
5. Small corona sound benefiting from excellent design
6. Convenient for maintenance
