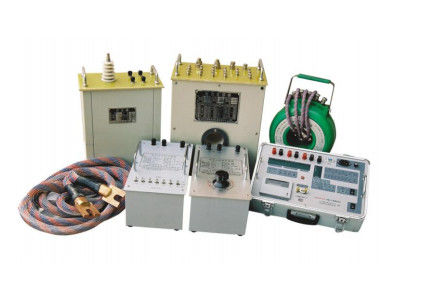

0.05S Class CT PT Test Equipment With Auto Protection

0.05S Class CT PT Test Equipment With Auto Protection
0.05S Class CT PT Test Equipment With Auto Protection

Large Image :  0.05S Class CT PT Test Equipment With Auto Protection

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: HEW-15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30-45 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Rated Primary Current: 5-5000A Rated Primary Voltage: Up To 35KV
Accuracy Class: 0.05S, 0.02, Or Better (SCT Input Voltage: AC 220V+/-10%
Rated Secondary Current: 5A, Or 1A Application: Worksite, Lab
High Light:

worksite 0.05S CT PT Test Equipment

,

worksite CT PT Test Equipment

,

5000A worksite Portable Test Equipment



Portable CT PT Test Equipment System HEW-15



1) Can test error, impedance and admittance of CT & PT

2) Fast test speed and accurate data

3) With auto protection for polarity reverse connection, indication of wrong wiring & error beyond range

4) Auto save test data, and print in local test site, also can upload to PC

5) Voltage regulator: AC 220V+/-10% input





HEW-2000W Digital Transformer Tester

Rated current &voltage 5A,5A(S), 1A, 150V, 100V, 110/√3V, 100/√3V, 100/3V etc
Measuring Range
Ratio error 0.001%-19.99%
Phase error ±0.001' ~ ±999.91'
Impedance 0.001Ω~ 19.99Ω. Minimum resolution: 0.001Ω
Admittance 0.001 ms ~ 19.99ms. Minimum resolution:0.001 ms
Power consumption < 20VA
Rated frequency 50 or 60HZ





HL50-14 Standard Current Transformer

Rated primary current(A) 5-5000A
Rated secondary current 5A,1A
Accuracy class 0.02% or 0.05S%
Rated secondary load 0.2 ohm
Frequency 50HZ
Operating Range 1%--120%



SZ5 Current Generator



Main Technical Parameter

Products Description: Current Generator
Products Model: SLQ-15KVA
Input Voltage: AC 0-250V
Output Current: AC 0-5000A
Rated Capacity: 15kVA
Rated Input Current: AC 60A
Frequency: 50Hz
Current Output Model:

Fixed terminal at current is 50A, 200A, 500A

Through-hole connection at current is 500A-5000A

Products Shape: Stainless Steel Box
Working condition: 0 - 40ºC, RH ≤ 90%



CT burden box

Rated Current 5A or 1A (optional)
Operating Range 1%--120%
Rated load (VA)

CosФ = 0.8: 2.5, 3.75, 5, 6.25, 7.5, 10, 12.5, 15, 20, 25, 30, 40,

50, 60 VA or more options

CosФ = 1.0: 2.5, 3.75, 5, 6.25, 7.5, 10 VA or more options

Rate Frequency 50Hz
Accuracy Class ±3%



VT burden Box

Rated voltage 100V, 100/√3V or more options
Operation Range 20%--120%
Rated load 1.25VA, 2.5VA, 5VA, 10VA,20VA, 40VA, 80VA (Total load:158.75 VA) or more option
Fundamental error ±3%
Power factor COSФ=0.8
Rated Frequency 50Hz





HJS63-18 Standard PT (with Voltage Generator)



Main Technical Parameter

Products Description: Standard Voltage Transformer (with Voltage Generator)
Products Model: HJS-35G3
Rated Primary Voltage:

6kV, 10kV, 22kV, 35kV, 38.5kV

6/√3kV, 10/√3kV, 22/√3kV, 35/√3kV

Rated Secondary Voltage: 110V, 110/√3V, 100V, 100/√3V





Rated Voltage Ratio:

6/0.11kV, 6/√3/0.11/√3kV, 6/0.1kV, 6/√3/0.1/√3kV

10/0.11kV, 10/√3/0.11/√3kV, 10/0.1kV, 10/√3/0.1/√3kV

22/0.11kV, 22/√3/0.11/√3kV, 22/0.1kV, 22/√3/0.1/√3kV

35/0.11kV, 35/√3/0.11/√3kV, 35/0.1kV, 35/√3/0.1/√3kV

Accuracy Class: 0.05S%,0.02%, 0.01% ,(optional)
Rated Secondary Burden: 0.2VA(110V, 100V), 0.07VA(110/√3V, 100/√3V)
Power Factor: COSΦ=1.0
Operating Range: (20%-120%). Un
Frequency: 50Hz
Insulation: Epoxy resin casting
Product Structure: With Voltage Generator
Input volage of the Voltage Generator: AC 0-250V
Product Shape: Stainless Steel Box
