| Accuracy Class: | 0.05 | Application: | Filed Test, Lab Test |
|---|---|---|---|
| Test Function: | Ratio, Ratio Error, Phase Angle Error..... | Voltage Ratio Range: | 6～66kV/100V; 6/√3~110√3kV/100/√3V |
| Secondary Burden: | 5-500VA | Weight: | 20kgs |
| High Light: | 500VA 0.05 Class CT PT Test Equipment,500VA CT PT Test Equipment,Portable 500VA CT PT Analyser |
||

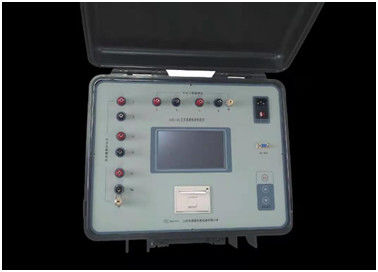

Portable PT Test Equipment MPT01
Technical Index
| Accuracy class | 0.05 |
| Voltage ratio test range |
6～66kV/100V 6/√3~110√3kV/100/√3V 6kV/100V,(6/√3)kV/(100/√3)V, 6.6kV/100V,(6.6/√3)kV/(100/√3)V,10kV/100V,(10/√3)kV/(100/√3)V,35kV/100V,(35/√3)kV/(100/√3)V,66kV/100V,(66/√3)kV/(100/√3)V,and(110/√3)kV/(100/√3)V |
| Secondary burden | 5-500VA |
| Maximum output capacity | 800VA |
| Power factor | 0.8 or 0.1-1 |
| Dimension | 400×300×180mm |
| Weight | 20kgs |
Features
1) Portable Field testing with function equal to test bench
2) Integrating standard PT, voltage regulator, voltage generator, voltage burden
and transformer comparator together
3) Ratio test, ratio error test, phase angle error test, polarity test, burden test, etc.
4) Can test electromagnetic type PTs with accuracy 1 to 0.2 class (allowing with other secondary winding)
5) Nameplate guess
6) Can be used as CT PT transformer comparator
Technical service
Much experienced technical team will provide strong technical support for your market development. We can provide support on customization, maintenance, device design, construction scheme, design optimization, and product development.
Quality control
We have professional quality control team. Our quality control covers materials, production procedure, finished product inspection, final inspection before loading, inspection report.
Customization is available
