0.02 Class CT PT Test Equipment , Low Current CT Test Kit

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

0.02 Class CT PT Test Equipment , Low Current CT Test Kit

0.02 Class  CT PT Test Equipment , Low Current CT Test Kit
0.02 Class  CT PT Test Equipment , Low Current CT Test Kit

Large Image :  0.02 Class CT PT Test Equipment , Low Current CT Test Kit

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCLCT-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30-45 days
Supply Ability: 20 sets per month
Detailed Product Description
Display: LED Standard CT Class: 0.02
Primary Current: 0.6-60A Secondary Current: 1-50mA
Operation Range: 1-120% Rated Frequency: 50/60 HZ
Output Current: 5 - 100A Rated Capacity: Around 500VA
High Light:

0.02 Class CT PT Test Equipment

,

0.02 Class 60A CT PT Test Equipment

,

50HZ 0.02 Class CT Test Kit



0.02 Class 60A CT PT Test Equipment Low Current CT Test System

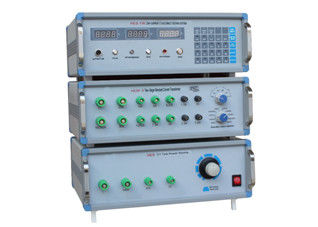

System Configuration

Low-Current CT Tester

Two-Stage Standard Current Transformer

CT Test Power source





Technical Parameter



Low-Current CT Tester (Bridge)

Display: LED
Measure item: Ratio errors & Phase errors of the low-Current CT
Rated current: 1mA, 2mA, 5mA, 20mA, 50mA
Multiplier: 0.5, 1, 1.5, 2, 3
Accuracy class: ±2%
Operation range: (1%-200%).In
Frequency: 50/60Hz
Ratio error range: ±0.0001% ~ ±19.99%(Three positions: 1.999‰, 19.99‰, 199.9‰)
Minimum resolution:0.0001%.
Phase error range: 0.01' ~ ±900'(three positions: 9.00', 90.0', 900')
Minimum resolution: 0.01'
Alarm Function: Provided the sound & light alarm function when the polarity abnormal or ratio inconsistent.
Provided load for object CT: 0Ω, 5Ω, 10Ω, 20Ω, 30Ω, 50Ω, 100Ω, 200Ω, 250Ω, 500Ω (COSφ=1.0)
Input load on standard side: 10Ω (COSφ=1.0)
Communication Interface: Provided the RS232 serial communication interface
Power supply: AC 220V±10%
Power consumption: < 20VA





Two-Satge Standard Current Transformer

Frequency: 50Hz/60Hz
Primary Current (A): 0.6,1,1.5,2.5,3,4,5,6,7.5,8,10,15,20,30,50,60
Secondary Current (mA): 1, 1.5,2,2.5,3,10/3,4,5,20/3,7.5,8,10,15,50/3,20,25,30,100/3,50
Rated Current Ratio: Arbitrary combination of Pri,Current and Sec.Current
Accuracy Class: 0.02%
Operation Range: (5%-300%).In
Secondary Burden: 10Ω
Power Factor: COSΦ=1.0
Voltage Level: AC 600V
Insulation: Air
Operating Condition: Temperature: -5 oC ~ +40 oC
Relative Humidity (RH): up to 85% (max 90%)
Dimension (mm) : 460x380x160
Weight ( kg ): ~15kgs



CT Test Power Source

Input Voltage: AC 220V±10% 50/60Hz
Output Current: AC 5A, 50A, 100A
Rated Capacity: ~500VA
Output Voltage: Provided the Coarse adjustment & Fine adjustment
Adjustment Model: Manual adjustment





Feature

1) high accuracy and stability

2) specially used for test of low current CT

3) small size and weight, suitable for carrying

4) operation mode: manual

5) ratio error test, phase angle test, polarity test







0.02 Class  CT PT Test Equipment , Low Current CT Test Kit 0

                           Optional design for bridge
