CT PT 220KV Portable Test Equipment With PC Communication Interface

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

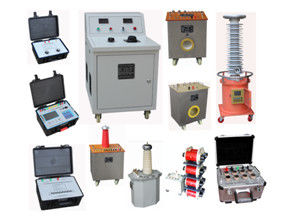

CT PT 220KV Portable Test Equipment With PC Communication Interface

CT PT 220KV Portable Test Equipment With PC Communication Interface
CT PT 220KV Portable Test Equipment With PC Communication Interface

Large Image :  CT PT 220KV Portable Test Equipment With PC Communication Interface

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: HES-30
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30-45 days
Supply Ability: 5 sets per month
Detailed Product Description
Standard CT Class: 0.01S, 0.05, 0.02, 0.01...optional Standard PT: 0.05 Class
Current Range: 5-5000A, Or More For Option Voltage Range: 6KV-220KV
Excitation Transformer: 10KVA Rated Frequency: 50 Or 60HZ
PC Software: Available Transformer Tester Accuracy: 2%
High Light:

0.01S Class 5000A Portable Test Equipment

,

0.01S Class Portable Test Equipment

,

220KV 0.01S Class current potential transformer



CT PT TEST Equipment System HES-30



Configuration

Standard CT, ±0.01S%
Standard PT (6kV-38.5kV), ±0.05%
Standard PT (110/√3kV, 220/√3kV), ±0.05%
CT Burden (5A, 1A), ±3%
PT Burden (100V, 100/√3V, 100/3V), ±3%
PT Burden (110V, 110/√3V, 110/3V), ±3%
Transformer Tester (Calibrator), ±2%
Current generator
Voltage Generator
Resonant high voltage source
Induction voltage divider
Secondary Test Cables
PC Test Software
CT PT Test Control Bench



Technical Parameter



HES-30 CT/PT Test Control Bench



Input Voltage: AC 220V±10%, 50Hz, Single-Phase
Input Current: AC 0-120A
Rated Capacity: 30kVA
Output Voltage: AC 0-250V
Output Current: AC 0-120A
Output Voltage Adjustment: Provided the Coarse adjustment & Fine adjustment
Protection function: Provided over current & overvoltage protection
Output conversion functions: Connect to Current source / Voltage source conversion functions
The Bench Structure: Horizontal structure
Power Indicator: LED, Output current, Output voltage
Color of the Bench 7035 Gray





HES-1Bx Transformer Tester

Measure item: Ratio errors & Phase errors of the CT and PT
Rated current: 5A, 1A
Rated voltage: 100V, 110V, 115V, 120V, 150V, 200V, 220V, 230V
Multiplier: 1/√3, 1/3, 1, 1.5, 2
Accuracy class: ±2%
Operation range: (1%-120%).In, (20%-120%).Un
Frequency: 50Hz or 60Hz
Ratio error range: ±0.0001% ~ ±19.99% (3 ranges: 0.1999%, 1.999%, 19.99%).
Minimum resolution:0.0001%.
Phase error range: 0.01' ~ ±900' (3 ranges: 9.00', 90.0', 900')
Minimum resolution: 0.01'
Impedance range: 0.001Ω~ 19.99Ω.
Minimum resolution: 0.001Ω.
Admittance range: 0.001 ms ~ 19.99 ms.
Minimum resolution:0.001 ms.
Alarm Function: Provided the sound & light alarm function when the polarity abnormal or ratio inconsistent.



Input Load:

- On Standard CT secondary side: ≈0.11Ω, COSφ≈1.0

- On Test Object CT secondary side: ≈0.003Ω, COSφ≈1.0

- On Standard PT secondary side: ≈0.05VA (100V)

Communication Interface: Provided the RS232 serial PC communication interface
Display model: LCD
Power supply: AC 220V±10%, 60Hz
Power consumption: < 20VA
Product Type: Portable type.





CT Burden FY47-49

Rated Current: 5A, 1A



Power Factor

and Rated Burden:

In=5A:

COSФ=0.8: 2.5/3.75/5/6.25/7.5/10/12.5/15/20/25/30/40/50/60VA

COSФ=1.0: 2.5/3.75/5/6.25/7.5/10VA

(more option available)

In=1A:

COSФ=0.8: 2.5/3.75/5/6.25/7.5/10/12.5/15/20/25/30/40/50/60VA

COSФ=1.0: 2.5/3.75/5/6.25/7.5/10VA

(more option available)

Accuracy Class: ±3%
Operation Range: (1%-120%). In
Frequency: 50Hz or 60Hz
Withstand Voltage: 2kV/1min
Insulation: Air
Operating Model: Short-time (Used in CT Accuracy Testing System)
Product Type: Portable type.



High-current Test Cables of the CT

Cables includes: 3000A(600mm2) x 3m x 2pcs, 1000A(200mm2) x 5m x 1pc

500A(100mm2) x 3m x 2pcs, 250A(50mm2) x 3m x 2pcs





HLB-50G1 Standard CT





Rated Primary Current(A):

5, 7.5, 10, 12.5, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 120, 125, 150, 160, 200, 250, 300, 315, 350, 400, 450, 500, 600, 630, 700, 750, 800, 900, 1000, 1200, 1250, 1400, 1500, 1600, 1800, 2000, 2500, 3000, 3150, 3500, 4000, 4500, 5000A

(more option available)

Rated Secondary Current: 5A, 1A
Rated Current Ratio: 5A~5000A/5A, 5A~5000A/1A (more option available)
Accuracy Class: 0.01S% (0.05%, 0.02%, 0.01% or better are available)
Rated Secondary Burden: 0.2Ω (Burden is 5VA at I2 = 5A, Burden is 0.2VA at I2 = 1A)
Power Factor: COSΦ=1.0
Operating Range: (1%-120%). In



Connection Mode:

Fixed connection terminals at Pri.current range is 5A-450A

Pass-through connection with 2 turns at Pri.current range is 500A-900A

Pass-through connection with 1 turn at Pri.current range is 1000A-5000A

Frequency: 50Hz or 60Hz
Voltage Level: AC 600V
Withstand Voltage: 2000V 1min
Insulating Medium: Air





SLQ-30KVA Current Generator



Input Voltage: AC 0-250V
Output Current: AC 0-5000A
Rated Capacity: 30kVA
Rated Input Current: AC 120A
Frequency: 50Hz or 60Hz
Current Output Model:

Fixed terminal at current is 50A, 200A, 500A

Through-hole connection at current is 500A-5000A

Products Shape: Stainless Steel Box
Working condition: 0 - 40ºC, RH ≤ 90%





FY95-1 PT Burden

Rated Voltage: 100V, 100/√3V, 100/3V
Power Factor: COSФ=0.8, COSФ=1.0
Rated Burden (VA):

1.25VA, 2.5VA, 5VA, 10VA, 20VA, 40VA, 50VA, 80VA, 100VA

(more option available)

Total Output Burden: 308.75VA (more option available)
Accuracy Class: ±3%
Operation Range: (20%-120%). Un
Frequency: 50Hz or 60Hz
Withstand Voltage: 2kV/1min
Insulation: Air
Operating Model: Short-time (Used in PT Accuracy Testing System)





HJB-35G3 Standard PT

Rated Primary Voltage: 6kV, 10kV, 15kV, 22kV, 35kV, 38.5kV
Rated Secondary Voltage: 100V,110V,100/√3V,110/√3V,100/3V,110/3V





Rated Voltage Ratio (kV):

6/0.1, 6/√3/0.1/√3, 6/√3/0.1/3, 6/0.11, 6/√3/0.11/√3, 6/√3/0.11/3

10/0.1, 10/√3/0.1/√3, 10/√3/0.1/3, 10/0.11, 10/√3/0.11/√3, 10/√3/0.11/3

15/0.1, 15/√3/0.1/√3, 15/√3/0.1/3, 15/0.11, 15/√3/0.11/√3, 15/√3/0.11/3

22/0.1, 22/√3/0.1/√3, 22/√3/0.1/3, 22/0.11, 22/√3/0.11/√3, 22/√3/0.11/3

35/0.1, 35/√3/0.1/√3, 35/√3/0.1/3, 35/0.11, 35/√3/0.11/√3, 35/√3/0.11/3

38.5/0.1, 38.5/√3/0.1/√3, 38.5/√3/0.1/3, 38.5/0.11, 38.5/√3/0.11/√3, 38.5/√3/0.11/3

Accuracy Class: 0.05% (100V,110V,100/√3V,110/√3V), 0.1% (100/3V,110/3V)
Rated Secondary Burden: 0.2VA(110V, 100V), 0.07VA(110/√3V, 100/√3V), 0.02VA(110/3V, 100/3V)
Power Factor: COSΦ=1.0
Operating Range: (20%-120%). Un
Frequency: 50Hz or 60Hz
Insulation: Epoxy resin casting





HJB-220G3 Standard PT

Rated Primary Voltage: 110/√3kV, 220/√3kV
Rated Secondary Voltage: 110V, 110/√3V, 100V, 100/√3V



Rated Voltage Ratio:

110/√3/0.11/√3kV, 110/√3/0.11kV, 110/√3/0.1/√3kV, 110/√3/0.1kV

220/√3/0.11/√3kV, 220/√3/0.11kV, 220/√3/0.1/√3kV, 220/√3/0.1kV

Accuracy Class: 0.05% (100/√3V,110/√3V), 0.1% (100V,110V)
Rated Secondary Burden: 0.2VA(110V, 100V), 0.07VA(110/√3V, 100/√3V)
Power Factor: COSΦ=1.0
Operating Range: (20%-120%). Un
Frequency: 50Hz /60Hz
Insulation: SF6 Gas



























SYQ-5/50 Voltage Generator

Input Voltage: AC 0-250V
Rated capacity: 5kVA
Rated output voltage: AC 50kV
Output current: AC 100mA
Measuring voltage: AC 0-100V (50kV/100V)
Insulation: Oil
Product Application: The product is a voltage generator, and used for inductive PT accuracy testing with 6kV-38.5kV voltage level



HJC-80 Resonant High Voltage Source



Product Application:

The system is a voltage generator, and used for Capacitive PT accuracy testing with 110/√3kV and 220/√3kV voltage level
Rated input voltage: AC 220V
Rated output voltage: AC 0~200 kV
Rated Capacity: 200 kVar
Max output current: AC 1.0 A
Frequency: 50Hz or 60Hz
The capacitance of the object CVT: 0.004uF ~0.02uF
Operating Condition: Temperature: -10oC ~ +50 oC
RH: up to 85% (max. 90%, non-condensing)



LCB-10KVA/10KV Exciting Transformer

Input Voltage: AC 0 - 250V, 50Hz
Output Voltage: AC 0 - 10kV, 50Hz
Output Current: AC 0-1A
Rated Capacity: 10kVA
Insulation: Dry type
Weight: ~ 50 kg



DKQ-40KVA/40KV Reactor

Rated Capacity: 40kVA/stage
Rated Voltage: AC 40 kV/stage
Rated Current: AC 1 A/stage
Inductance Range: 125H-500H/stage
Insulation: Epoxy resin casting
Weight: ~ 60 kg/stage
Quantity: 5pcs





HJF Inductive Voltage Divider



Accuracy Class: 0.001%
Fixed Voltage Ratio: 10-1, 10-2 , 10-3
Variablle Voltage Ratio: 10 x (10-1 + 10-2 + 10-3 + 10-4 + 10-5 + 10-6 + 10-7).Un
Input Impedance: >100kΩ
Output impedance: <3Ω
Input Votage Range: Max AC 600V
Output Voltage: Max AC 0~600V
Operation Range: (20%--120%).Un
Frequency: 50/60Hz
Temperature: 5°C ~ 40°C
Relative Humidity (RH): <85%
Weight: ~15kg
