Product Details:
Payment & Shipping Terms:
|
| Current Output: | 3*(0-40A) | Voltage Output: | 4*(0-120V) |
|---|---|---|---|
| Accuracy: | 0.2% | DC Voltage: | 0-+/-160V/+/-320V |
| High Light: | 40A Three Phase Relay Test Kit,0.2% Three Phase Relay Test Kit,20Hz protection relay testing |
||

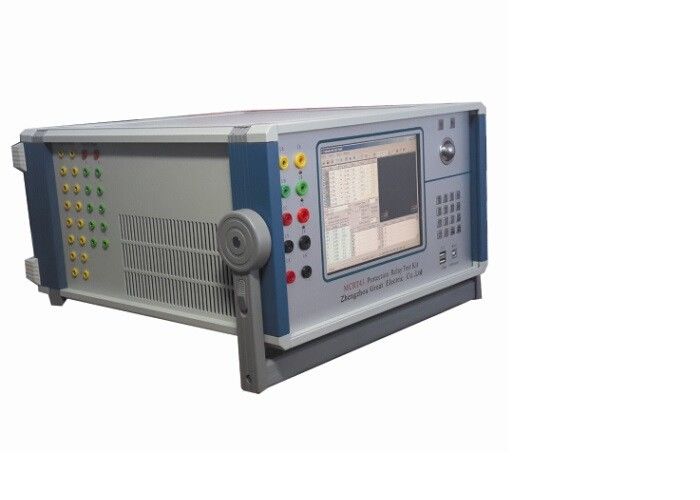

Protection Relay Test Kit MCRT43
Main Functions
1) Four Phases voltage & Three Phases current output, can test various of protection relay
2) Convenient operation by using mouse and big LCD screen.
3) Able to test various relays and micro-computer protections devices
4) Also able to simulate different complicated transients, permanent&transformative faults to
do complete group test
5) Two operation way: in-built computer (operated by mouse) and by external PC, able to test various
relays by software, show vector diagram and fault waveform, then save test records and print out.
6) Strong software function:
Able to complete various complicated test, such as three phase differential test,
line protection re-close test and etc…, and can test & scan various protection rated value;
can get fault playback and real-time saving test records, showing vector diagram and print out.
7) Big LCD display (800*600)
8) Adopts reasonable cooling structure, and various protections inside and soft-start function,
9) with self-diagnose and interlock function.
Technical Index
| AC current source | |
| Output accuracy | 0.2% |
| Output range | 3*(0-40A); 0-120A (three phases in parallel) |
| Phase current which can get long-time working 10A | |
| Maximum output power of phase current: 420VA | |
| Maximum output power of three phase current in parallel: 900VA | |
| Permissible working time (when three phase current in parallel to get maximum output): 10s | |
| Frequency (basic wave) range | 20-1000Hz |
| Harmonics times | 1-20 times |
| DC current source | |
| Output accuracy | 0.2% |
| Current output | 0-+/-10A per phase; 0-+/-30A (three phase in parallel) |
| Maximum load voltage output | 20V |
| Output accuracy | 0.2% |
| AC voltage source | |
| Phase voltage output | 4*(0-120V) |
| Line voltage output | 0-240V |
| Phase voltage/line voltage output power | 80VA/100VA |
| Frequency (basic wave) range | 20-1000Hz |
| Harmonics | 1-20 times |
| DC voltage source | |
| Output accuracy | 0.2% |
| Phase voltage output amplitude | 0-+/-160V |
| Line voltage output amplitude | 0-+/-320V |
| Phase voltage/line voltage output power | 70VA/140VA |
| Dimension | 400*300*180mm |
| Weight | approx 18KG |
| Power supply | AC 220V±10%,50／60Hz |
| Ambient temperature | -10℃ ～ +50℃ |
Switch signal and time measurement
| Switch signal input |
10circuits |
Idle contact: 1～20mA,24V Potential contact access: “0”:0～ +6V； “1”:+11 V～ +250V |
| Switch signal output | 8 pairs | DC:220V／0.2A；AC:220V／0.5A |
| Time measure |
Test range: 0.1ms ～ 9999s , accuracy 0.1mS Measurement range: 0.1ms ～ 9999s Measurement accuracy:0.1mS |
|
