| Voltage Range: | 4*(0-120V) | Current Range: | 3*(0-40A) |
|---|---|---|---|
| Output Accuracy: | 0.5% | Display: | LCD |
| High Light: | 120V Protection Relay Test Equipment,40A Protection Relay Test Equipment,0.2% protective relay test |
||

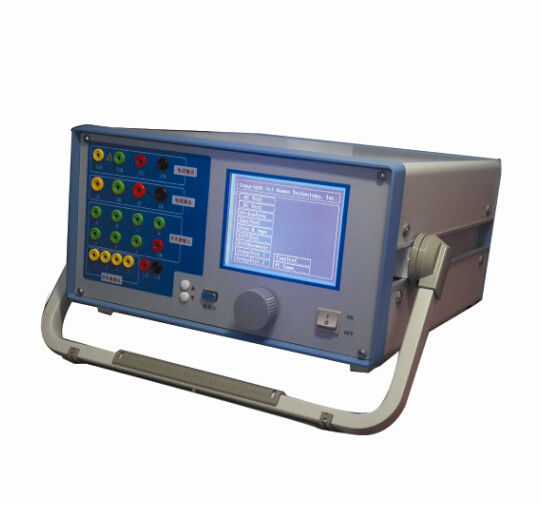

Protection Relay Test Kit MCRT40
Main Functions
1) With 4 Phase voltage & 3 Phase current output, can test various of protection relay
2) 4th phase voltage Ux is multifunction voltage and can be set as 4 kinds of 3U0 or test testing synchronous
voltage, or any voltage value output.
3) Easy to operate with using rotation mouse and display by large LCD screen.
4) Can test all kinds of relay and micro-computer protections, also can simulate various complicated transient,
permanent&transformative fault to do whole group test
5) Can be operated by external PC, can test all kinds of object by software, also display vector diagram and
fault waveform, then can save the test records and print out.
6) Powerful software function: can finish various complicated test, such as three phase differential test,
line protection re-close test and etc…, and can test & scan various protection rated value, also can get
fault playback and real-time save test records, display vector diagram and then print out.
7) Switch signal:
7 circuits contact input and 2 pair idle contact output. Also this function can be extended
8) Large screen LCD display (320*240), with clear display.
9) With various protections inside, also with self-diagnose and interlock function.
10) With independent special DC power source output 110V&220V special-use adjustable DC source output.
Technical Index
| AC current source | |
| Output accuracy | 0.5% |
| Output range | 3*(0-40A); 0-120A (three phases in parallel) |
| Phase current which can get long-time working 10A | |
| Maximum output power of phase current: 420VA | |
| Maximum output power of three phase current in parallel: 900VA | |
| Permissible working time (when three phase current in parallel to get maximum output): 10s | |
| Frequency (basic wave) range | 20-1000Hz |
| Harmonics times | 1-20 times |
| DC current source | |
| Output accuracy | 0.5% |
| Current output | 0-+/-10A per phase; 0-+/-30A (three phase in parallel) |
| Maximum load voltage output | 20V |
| Output accuracy | 0.5% |
| Phase voltage output | 4*(0-120V) |
| Line voltage output | 0-240V |
| Phase voltage/line voltage output power | 80VA/100VA |
| Frequency (basic wave) range | 20-1000H |
| Harmonics | 1-20 times |
| DC voltage source | |
| Output accuracy | 0.5% |
| Phase voltage output amplitude | 0-+/-160V |
| Line voltage output amplitude | 0-+/-320V |
| Phase voltage/line voltage output power | 70VA/140VA |
| Dimension | 400*300*180mm |
| Weight | approx 20KG |
| Power supply | AC 220V±10%,50／60Hz |
| Ambient temperature | -10℃ ～ +50℃ |
Switch signal and time measurement
| Switch signal input |
7circuits |
Idle contact: 1～20mA,24V Potential contact access: “0”:0～ +6V； “1”:+11 V～ +250V |
| Switch signal output | 2 pairs | DC:220V／0.2A；AC:220V／0.5A |
| Time measure |
Test range: 0.1ms ～ 9999s , accuracy 0.1mS Measurement range: 0.1ms ～ 9999s Measurement accuracy:0.1mS |
|
