0.5 class in-built PC Four Phase Three Phase Protection Relay Test Equipment LCD Display

I'm Online Chat Now

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden package
Delivery Time:	4-8weeks
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	20 Sets Per Month

Contact Now

Detailed Product Description

Voltage:	4*300V/100VA	Current:	3*30A/350VA
Accuracy:	0.05%, 0.1%	Frequency:	0.001HZ-1000HZ
Auxillary DC Supply:	110V/120V	Weight:	≤11.5kg
Warranty:	3 Years Warranty	Control:	Local
Highlight:	3x30A Protection Relay Test Equipment , 3x30A 0.1% Protection Relay Test Equipment , Portable 3x30A 3 Phase Relay Test Set

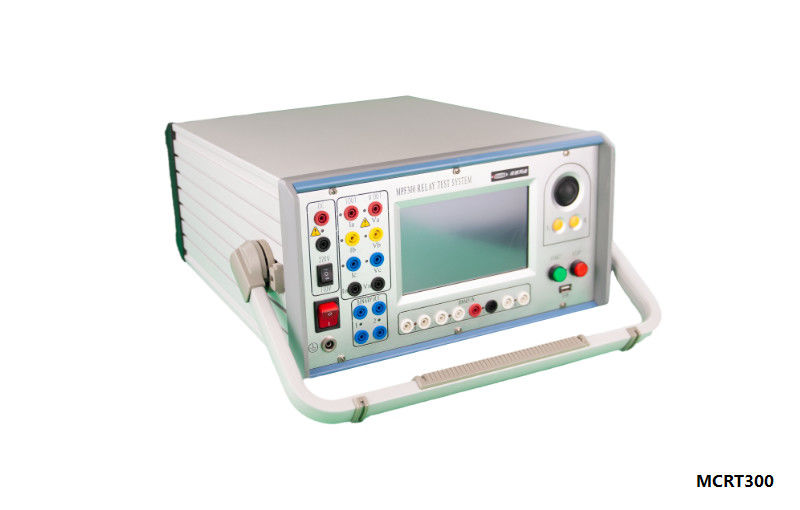

Portable Universal Protection Relay Test Equipment

MC300 is an economical and portable relay tester for substation 3-phase testing. The 3 current

channels (each 40A max) and 4 voltage channels (each 300V max) makes it possible to satisfy

the needs for all kinds of testing applications in electrical distribution substions, power plants and

industrial sectors. With its touch screen and in-built test modules user can perform manual and

automatic test easily.

Three currents and four voltages

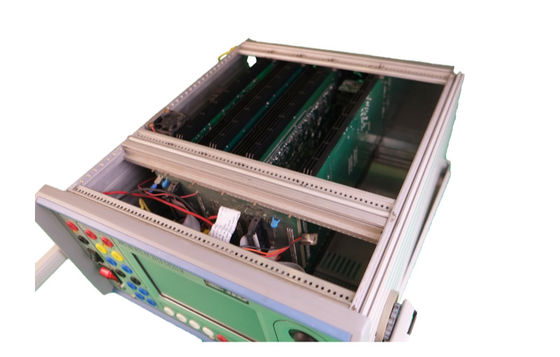

Advanced modular Plug-in structure
Touch screen control
Easy to use with in-built test modules
Linear power amplifiers
Generators are protected for overload/over temperature/short circuit
Audio visual overload, contact status, short circuit, hardware protection indication on front panel
Light weight, easy to use
3 years warranty
