Name: 0.05% Protection Relay Test Equipment , Portable Protection Relay Test Kit
Brand: HNMC
SKU: MC300
Rating: 4.5 (196 reviews)

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	4-8weeks
Payment Terms:	Western Union, MoneyGram, L/C, T/T

Contact Now

Detailed Product Description

Voltage:	4 X 300V / 100VA	Voltage Accuracy:	Error < 0.05 % Rd.+ 0.01 % Rg. Typ.
Voltage Output Time:	Continuous	Current Range:	3 X 30A / 350VA
Current Accuracy:	Error < 0.1 % Rd. + 0.02 % Rg. Typ.	Current Output Time:	> 15 Sec. At 40A
Frequency:	DC, 0.001Hz~1000Hz	Weight:	≤11.5kg
High Light:	3x30A Protection Relay Test Equipment , 0.05% Protection Relay Test Equipment , Portable Protection Relay Test Kit

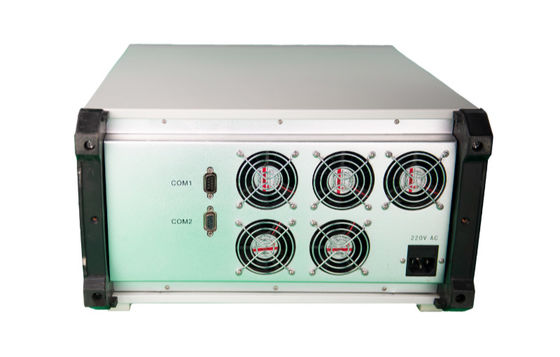

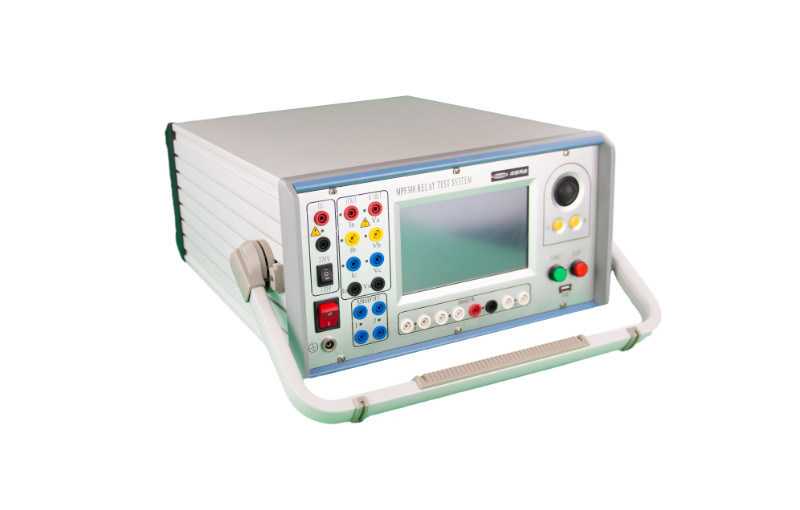

Portable Universal Protection Relay Test Equipment

MC300 is an economical and portable relay tester for substation 3-phase testing.

The 3 current channels (each 40A max) and 4 voltage channels (each 300V max)

makes it possible to satisfy the needs for all kinds of testing applications in electrical

distribution substions, power plants and industrial sectors. With its touch screen

and in-built test modules user can perform manual and automatic test easily.

3 Current and 4 voltages

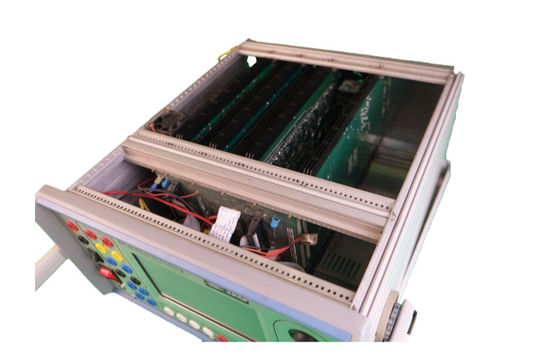

Modern modular Plug-in structure
Touch screen operation
Convenient to use with in-built test modules
Linear amplifiers
With verload/over temperature/short circuit protection
Audio visual overload, contact status, short circuit, hardware protection indication

After sales service

Our sales and technical team can guarantee a fast and highly efficient after sales service for our products sold.
Once problem happens in clients, firstly we will consider online support of our clients to solve it quickly; secondly we will consider to provide spare parts for client to replace after fixing reason.

We will provide best service to support your marketing field.
