Product Details:
Payment & Shipping Terms:
|
| Voltage: | 4 X 300V / 100VA | Voltage Accuracy: | Error < 0.05 % Rd.+ 0.01 % Rg. Typ. |
|---|---|---|---|
| Voltage Output Time: | Continuous | Current Range: | 3 X 30A / 450VA |
| Current Accuracy: | Error < 0.1 % Rd. + 0.02 % Rg. Typ. | Current Output Time: | > 15 Sec. At 30A |
| Time Synchronization: | GPS, IRIG-B | Weight: | ≤16kg |
| High Light: | 4x300V Protection Relay Test Equipment,0.01% Protection Relay Test Equipment,IRIG-B Relay Testing System |
||
Relay Testing System

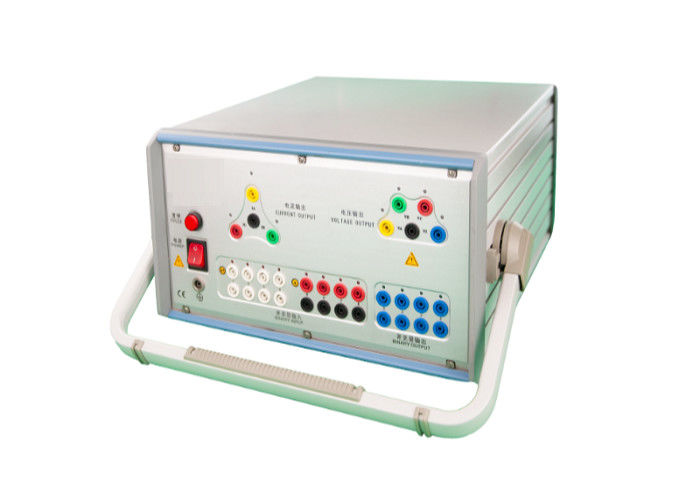

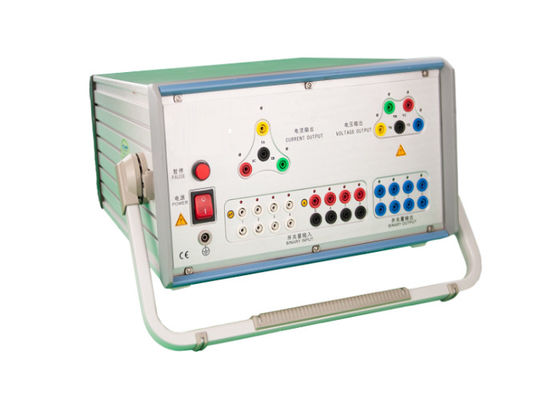

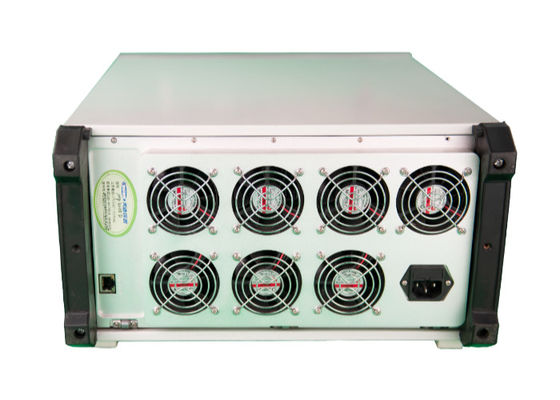

MC3000D is a compact basic test system for three-phase secondary testing. It’s capable to do all protection relay tests, such as simple overcurrent relays and end-to-end test. All current and voltage outputs can be individually adjusted with respect to amplitude, phase angle and frequency via PC controlled relay test software.
Three currents and four voltages
High power and high accuracy
Advanced modular Plug-in structure
Full automated testing using PC control software
End to end test with GPS or IRIG-B
Light weight, easy to use
3 years free warranty
| Voltage | |
| Range | 4 x 300V / 100VA |
| Accuracy | error < 0.05 % rd.+ 0.01 % rg. typ. |
| Output time | continuous |
| Current | |
| Range | 3 x 30A / 450VA |
| Accuracy | error < 0.1 % rd. + 0.02 % rg. typ. |
| Output time | > 15 Sec. at 30A |
| Frequency | |
| Range | DC, 0.001Hz~1000Hz |
| Accuracy | ±1ppm |
| Resolution | 0.001Hz |
| Others | |
| Auxillary DC supply | 0-300V |
| Binary inputs | 8 |
| Binary outputs | 4 |
| Time synchronization | GPS, IRIG-B |
| Weight | ≤16kg |
