9x30A Protection Relay Test Equipment , Multi Phase Protection Relay Tester

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

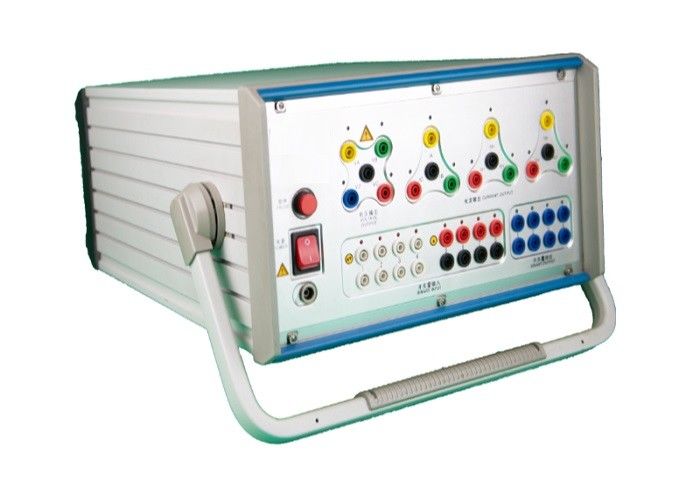

9x30A Protection Relay Test Equipment , Multi Phase Protection Relay Tester

9x30A Protection Relay Test Equipment , Multi Phase Protection Relay Tester
9x30A Protection Relay Test Equipment , Multi Phase Protection Relay Tester

Large Image :  9x30A Protection Relay Test Equipment , Multi Phase Protection Relay Tester

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MC3000C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 4-8weeks
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Voltage: 4 X 300V / 100VA Current: 9 X 30A / 450VA
Frequency: DC, 0.001Hz~1000Hz Auxillary DC Supply: 0-300V
Binary Inputs: 8 Binary Outputs: 4
Time Synchronization: GPS, IRIG-B Weight: ≤17.5kg
High Light:

9x30A Protection Relay Test Equipment

,

9x30A GPS Protection Relay Test Equipment

,

9x30A Multi Phase Protection Relay Tester

Multi-Phases Protection Relay Tester



The MC3000C is a perfect protection system testing tool and power system simulator. Comparing to MC3000A the MC3000C has 9 channel current sources, which makes 3 winding tranformer protection system testing very simple. People can also make full use of its 4 voltage and 9 current channels to do more power system simulation works.



Nine currents and four voltages

High power and high accuracy

Advanced modular Plug-in structure

Full automated testing using PC control software

End to end test with GPS or IRIG-B

Light weight, easy to use

3 years free warranty

Specifications

Voltage
Range 4 x 300V / 100VA
Accuracy error < 0.05 % rd.+ 0.01 % rg. typ.
Output time continuous
Current
Range 9 x 30A / 450VA
Accuracy error < 0.1 % rd. + 0.02 % rg. typ.
Output time > 15 Sec. at 30A
Frequency
Range DC, 0.001Hz~1000Hz
Accuracy ±1ppm
Resolution 0.001Hz
Others
Auxillary DC supply 0-300V
Binary inputs 8
Binary outputs 4
Time synchronization GPS, IRIG-B
Weight ≤17.5kg



Support on sales

Welcome the inquires from all over the worlds. We will provide our best solution with good quality with competitive prices according to your requirement.



Installation and training

For any projects, we can send technicians to help you with installation, and training your workers if necessary. We provide detailed user manual together with shipment for your learning.
