300V Single Phase Meter Test Bench With Pulse Width Modulation Technology

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

300V Single Phase Meter Test Bench With Pulse Width Modulation Technology

300V Single Phase Meter Test Bench With Pulse Width Modulation Technology
300V Single Phase Meter Test Bench With Pulse Width Modulation Technology

Large Image :  300V Single Phase Meter Test Bench With Pulse Width Modulation Technology

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: SYD12 series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detailed Product Description
Application Field: Lab, Utilities, Meter Producer Test Meter Type: Single Phase, Dual Channel Single Phase
Accuracy Class: 0.05, 0.1 Harmonic: 2-21times
Voltage Range: 1-300V Current Range: 1mA-120A
Output Stability: 0.05% Distortion: <0.5%
High Light:

300V Single Phase Meter Test Bench

,

120A Single Phase Meter Test Bench

,

0.05 class energy test bench

Single Phase Meter Test Bench SYD12 series



- Basic Error Test, Creep (no-load) test, Dial (Register) Test, warm up test, start test, Error repeat test,

  influence quantities test, voltage dip & interruption test, etc

- Harmonic test 2-21 times with analysis & display

- Different meter constant on each position

- Fully automatic operation by PC software and manual operation by touch screen

- ICT or Latch relay (on both phase channel and neutral channel) optional

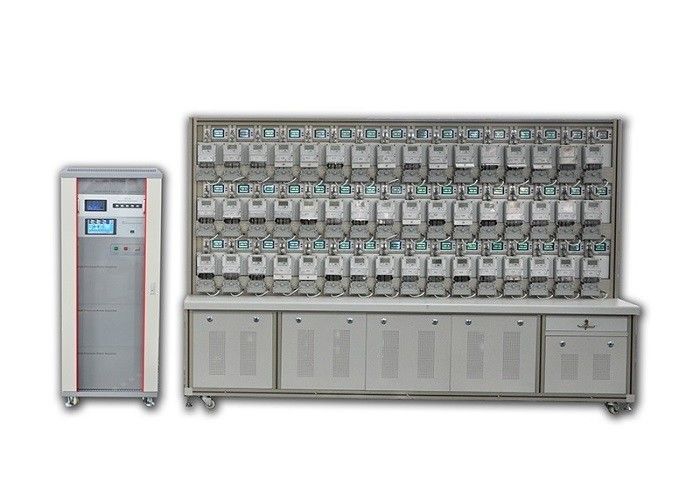

Single Phase Meter Test Bench SYD12 series



Technical Parameter

Accuracy

0.1% or 0.05% (depend on standard meter accuracy)

Voltage output
Range 1-300V (P-N)
Resolution 0.01%
THD <0.5%
Output Stability <0.05%
Output power ≥ 25VA/position (depends)
Current output
Range 1mA~ 120A
Resolution 0.01%
THD <0.5%
Output Stability <0.05%
Capacity ≥ 50VA/position (depend on ICT or latch relay on position if have)
Phase angle
Adjustment range 0° ~ 360°
Resolution 0.01°
Frequency
Range 45-65HZ
Resolution 0.01HZ
Other parameters
Power supply 220V or 3×220V/380V±10%, 50/60Hz±10%



Single Phase Meter Test Bench SYD12 series



Features

1) PWM (Pulse width modulation) technology, 85% efficient

2) Modular design allows customized configurations on hardware and software, customer-friendly

3) Measure current, voltage, power (P,Q,S), phase angle, PF, frequency, etc.

4) Can display harmonic analysis and vector diagram

5) Can test various single phase meters

6) Error calculation reset buttons & Error display on each meter position

7) QCD for quick connect the meters on each position

8) Black mark search function

9) Soft start/stop of voltage/current output

10) Through software it can save, inquiry and print of test results

11) Powerful PC software (communication by RS232)

12) Smart solutions for calibration with updateable software

13) Universal barcode input, and supports self-defined barcode

14) Protection: current open-circuit, voltage short-circuit and malfunctions, Auto protection & auto restore,

     optional modular for temperature monitor

15) Auto short-circuit function if meter absence



Single Phase Meter Test Bench SYD12 series



Configurations

1. Single phase Power source (PS)

2. Single phase Standard reference meter (SRM), class 0.02,0.05,0.1 (depend on client requirement)

3. Meter Rack

    Number of positions: 3,6, 10, 12, 20, 24, 30, 48 ...positions

    1 emergency STOP switch

    Each posistion include: 1 QCD 4 pins + 1 scanning head + 1 meter clamping + 1 RS/232or485

    communication port + 1 error display + 1 RESET button + 1 Set of voltage cable

4. PC Control software

5. Serial server (optional)

6. Manual control by touch screen

7. Optional

    MSVT (Multi-secondary voltage transformer) purpose to test the meters with close-link circuit

    ICT or latch relay on each position (optional)

    Personal Computer

    Printer
