Product Details:
Payment & Shipping Terms:
|
| Test Water Meter: | DN15-50 | Accuracy Class: | 0.2 |
|---|---|---|---|
| Operation Mode: | Fully Automatic | Control System: | PC/PLC/MOXA Card And So On |
| Vessel: | 10L/20L 100L/500L | Flow Range: | 0.016m³/h~40m³/h |
| High Light: | DN25 0.2 Water Meter Testing Equipment,0.2 PLC Water Meter Testing Equipment,0.2 water meter test |
||

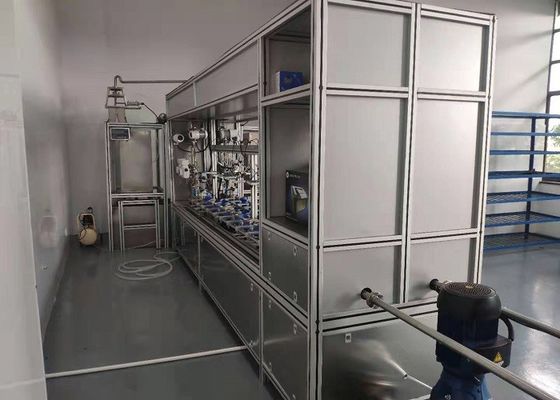

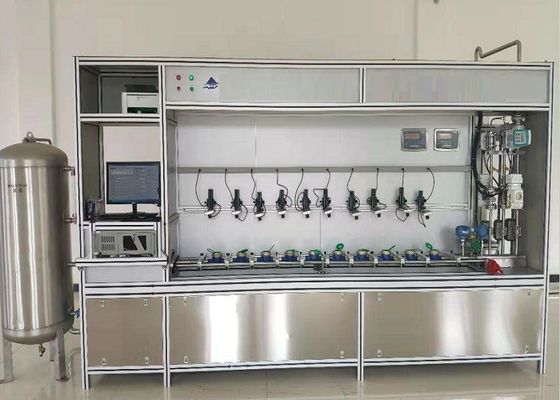

DN15-50 fully-automatic water meter test bench ( camera type volumetric method)
accuracy 0.2
| Automatic water meter test bench(Volume method) | ||
| Caliber | 15-50 | |
| Model | In series | Test |
| Size(mm) | 4400*1860*2200 | |
| Read Volume | Photoelectric and Camera | Photoelectric and Camera |
| Controller of Photoelectric Sensors | Receive photoelectric signal and control valve | Receive photoelectric signal and control valve |
| Read Water meter | Photoelectric/Camera | Photoelectric/Camera |
| Control System | PC/PLC/MOXA card and so on | PC/PLC/MOXA card and so on |
| Number of meter | DN15×6,DN20×5,DN25×4,DN32×4,DN40×3,DN50×2 | Single |
| Glass Rotameter | DN15×1,25×2,50×2,80×1 | DN15×1,25×2,50×2,80×1 |
| Vessel | 10L/20L 100L/500L | 10L/20L 100L/500L |
| Class | 0.20% | 0.20% |
| Flow Range | 0.016m³/h~40m³/h | 0.016m³/h~40m³/h |
| Optional | ||
| Pump | Q=50m³/h H=50m N=15Kw | Q=50m³/h H=50m N=15Kw |
| Storage Tank | 3m³ | 3m³ |
| Pressure Tank | 0.5m³ | 0.5m³ |
| Pressure-tight test | 0-2MPa | 0-2MPa |
After sales service
We will provide best service to support your marketing field.
