Test Meter Size: | DN15-25 | Meter Positions: | 8Nos |
---|---|---|---|
Operation Mode: | Semi-automatic | Accuracy: | 0.2% |
Size: | 4400*1860*2200 | Number Of Meter: | DN15×8,DN20×5,DN25×4, |
Storage Tank: | 3m³ | Pressure Tank: | 0.5m³ |
High Light: | 3m3 Water Meter Test Equipment,DN25 Water Meter Test Equipment,8 meters mte meter test equipment |

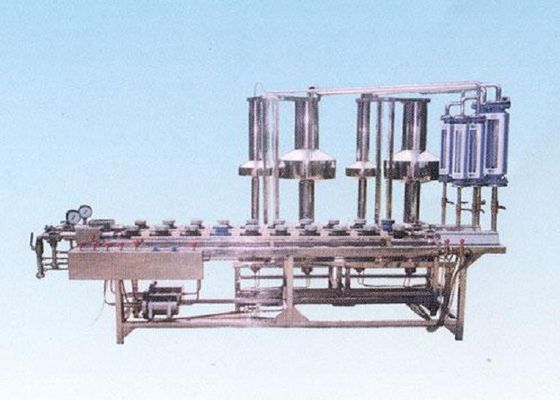

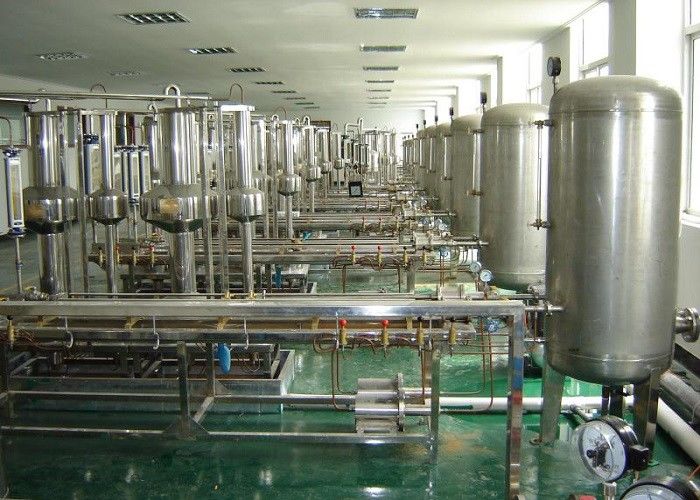

DN15/25 8 meters serial connection semi-automatic water meter test bench
Water meter test bench(Manual) | |||
Caliber | 15-25 | ||
Model | In series | Test | |
Size(mm) | 4400*1860*2200 | ||
Number of Meter | DN15×8,DN20×5,DN25×4, | Single | |
Glass Rotameter | DN15/25/50/80 | DN15/25 | |
Vessel | 10L/20L 100L/500L | 10L/20L 100L/500L | |
Class | 0.20% | 0.20% | |
Flow Range | 0.016m³/h~40m³/h | 0.016m³/h~40m³/h | |
Optional | |||
Pump | Q=50m³/h H=50m N=15Kw | Q=50m³/h H=50m N=15Kw | |
Storage Tank | 3m³ | 3m³ | |
Pressure Tank | 0.5m³ | 0.5m³ | |
Pressure-tight test | 0-2MPa | 0-2MPa | |
Liquied level photoelectrical | DC5V,4 | DC5V,4 | |
Controller of Photoelectric Sensors | Receive photoelectric signal and control valve | Receive photoelectric signal and control valve |

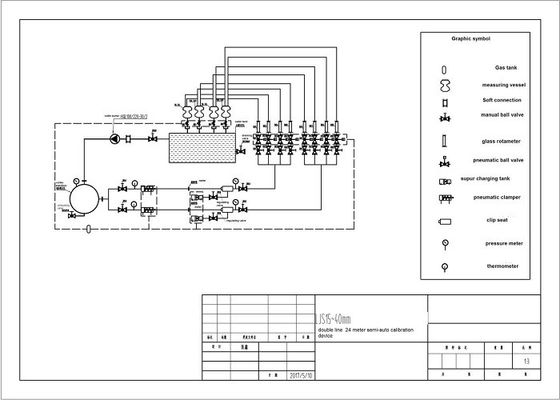

DN15/25
8 meters serial connection semi-automatic water meter test bench
Configuration list
Sr. | Item | specification | origin | Qty. |
1 | work capacitor and drainage bottom valve | 66L S stainless steel (2mm) | NINGBO | 1set |
2 | Glass rotameter | LZB-15S | NINGBO | 1pcs |
LZB-25S | 1pcs | |||
3 | Meter holder | DN25 S=80mm stainless steel | MINGTAI | 1set |
4 | Straight pipe | DN15×8,DN20×6,DN25×5 meter straight pipe ≥2D,(wall thickness3.5mm) | MINGTAI | 1set |
5 | Working table and accessories | Working table rack, rack, connect pipe, flange, elbow bend etc. | MINGTAI | 1 set |
6 | High speed photography module | MTSX-1 | MINGTAI | 10 set |
7 | PC |
2.8G or better /1G/160G/ 20`` LCD screen |
HUNTKEY | 1 set |
8 | software | Quality testing method software | MINGTAI | 1 set |
9 | Control box | Exclusive use for quality testing method | MINGTAI | 1set |
10 | Communication controller | Exclusive use for quality testing method | MINGTAI | 1set |
11 | Steady flow device (filtration) | 500L | MINGTAI | 1set |
12 | Pressure sensor | 0-2.5MPa | MIKE | 2 set |
13 | Temperature sensor | 0-50℃ | MIKE | 1set |
14 | Pressure retaining valve components | P≥2MPa | MINGTAI | 1set |
15 | pump | Q=6.3m³/h H=50m N=3Kw | SOUTH | 1 set |
16 | tank | 1000L | MINGTAI | 1set |
17 | transducer | 3KW | MISUBISHI | 1 set |
18 | Air compressor | 0.05 m3/min-0.8 | AOTUSI | 1 set |
19 | Water supply pipe | Wall thickness 3.5mm or better | MINGTAI | 1 set |
