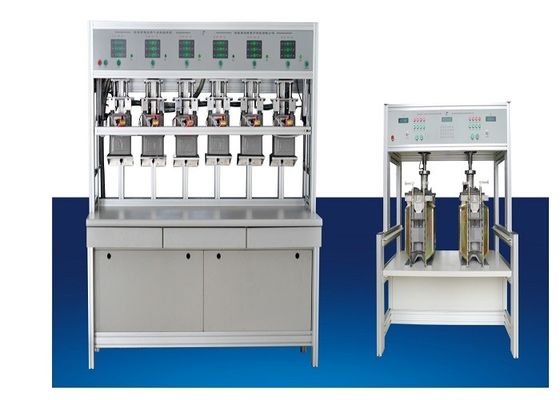

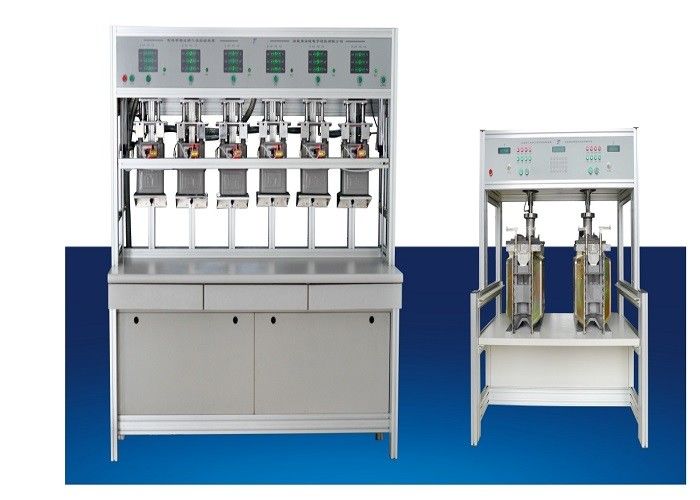

0.016m3/h Gas Meter Testing Equipment With Sonic Nozzle

0.016m3/h Gas Meter Testing Equipment With Sonic Nozzle
0.016m3/h Gas Meter Testing Equipment With Sonic Nozzle

Large Image :  0.016m3/h Gas Meter Testing Equipment With Sonic Nozzle

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCGB001C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden package
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
The Total Uncertainty Of The Device: S0.5% Flow Range: 0.016 M'/h ~ 6 M*/h
Flow Stability: 30.1% Traffic Points: 0.016m30. 0.025m3n, 0.04m3n, 05m3/. 0.8m3/m. 1. 2m3n,2 5m2Vh.4m3h, 6m3Mh.
Ambient Temperature: 20°C+5°C Atmospheric Pressure: 86&Pa- 106kPa
High Light:

0.016m3/h Gas Meter Testing Equipment

,

Clean Air Gas Meter Testing Equipment

,

Sonic nozzle test bench equipment

0.016 m'/h ~ 6 m*/h Sonic nozzle gas meter test bench



Summary

FJY01 series the speed of sound-nozzle ga5 meter testing device is a negative pressure method gas

meter standard equipment, which adopts sonic nozzle a5 standard meter. It is designed, processed,

manufactured and installed according lo relevant national standard. It is mainly used to test the flow

range of 0.016 m'/h ~ 6 m*/h of various styles of household diaphragm gas meter.



Features

1. Can test 610 12 Diaphragm Ga8 Meter simultaneously, high-efficiency.

2. Using standard nozzle, ensure the accuracy and stability of the device.

3. Using single-chip A1 D conversion technology. can accurately detect temperature. pressure, and

other parameters.

4. The whole sy8tem can be full automated test by PC and test result can be save, print and analyze.



Technical parameters

The total uncertainty of the device s0.5%
Flow stability 30.1%
Traffic points 0.016m30. 0.025m3n, 0.04m3n, 05m3/. 0.8m3/m. 1. 2m3n,2 5m2Vh.4m3h, 6m3Mh.
Ambient temperature 20°C+5°C
Relative Humidity 60%- 70%
Atmospheric pressure 86&Pa- 106kPa
Test medium Clean air

0.016m3/h Gas Meter Testing Equipment With Sonic Nozzle 0
