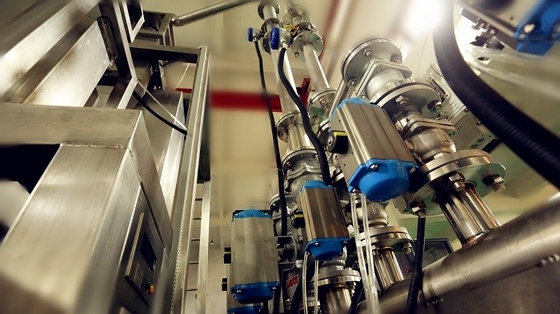

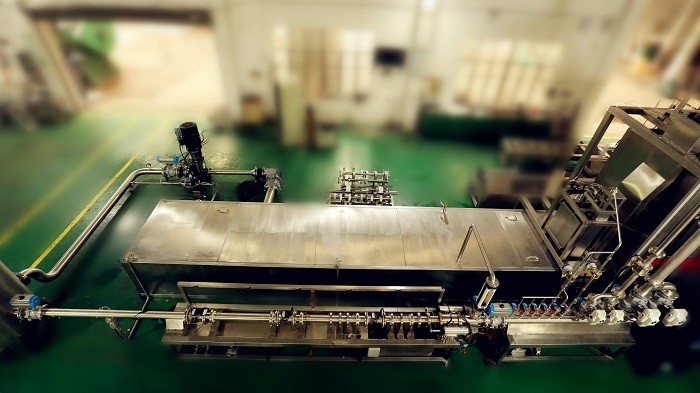

0.2 Class Automatic Water Meter Test Bench 10 Meters Positions

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

0.2 Class Automatic Water Meter Test Bench 10 Meters Positions

0.2 Class Automatic Water Meter Test Bench 10 Meters Positions
0.2 Class Automatic Water Meter Test Bench 10 Meters Positions 0.2 Class Automatic Water Meter Test Bench 10 Meters Positions

Large Image :  0.2 Class Automatic Water Meter Test Bench 10 Meters Positions

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCS15-25
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden package10 meters serial connection fully-automatic water meter test bench ( camera type volumetric method)
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
Pressure-tight Test: 0-2MPa Pressure Tank: 0.5m³
Storage Tank: 1m³ Pump: Q=6.3m³/h H=50m N=3.7Kw
Flow Range: 0.016m³/h~6.3m³/h Class: 0.20%
Vessel: 10L/20L 50L/100L Glass Rotameter: DN15/25

3 meters serial connection semi-automatic water meter test bench



1. Main technical index

1.1 accuracy : 0.2 class

1.2 water meter diameter and number (single line)

¢15×6,¢20×5,¢25×4,¢40×3,¢50×3

1.3 water supply pressure :0.3~0.5MPa;outlet pressure≥30kPa

1.4 flow range:4L/h~40m3 /h

1.5 instantaneous flow meter specification:

DN15(glass rotameter) 4~125L/h

DN25(glass rotameter) 120~1400L/h

DN50(glass rotameter) 1.4~9m3/h

1.6. Measure vessel volume: (10L-20L 100L-500L)

1.7. clamp stretch distance : (≥80mm(pneumatic))

1.8. straight pipe length: (serial connection 2D)

1.9. Measure vessel thickness: 10L-20L≥1.5mm 100L-500L ≥3mm

1.10.work platform thickness :≥3mm

1.11.measure vessel platform thickness: ≥3mm

1.12.pipe thickness:≥3.5mm

1.13.withstand pressure test : 0—2.0MPa

1.14. Valve specification: copper

1.15. material 304

2,Match 0.5m3vortex stabilizer technical index

2.1. volume: 0.3m3;

2.2.work pressure :0.3- 0.4MPa, test pressure: >0.6MPa,;

2.3.stainless material: thickness:3mm

3,Water tank (option)

3.1. volume: 2m3

3.2. stainless material : thickness≥1.5mm

4, water pump(option)

4.1 Model:KQL80/200-7.5/2 1No Q=43.5m3/h;H=38m;N=7.5kw







0.2 Class Automatic Water Meter Test Bench 10 Meters Positions 0

1. Turn on the pump

2. Put the METER under test in the verified position

3. Open all valves 1,2,3,4,5,6 to drain the air from the pipe

4. Close valves 3, 4, 5 and 6

5. Read the initial value v1 of the testing meter

6. Manually open one of the valves 3,4,5,6 according to the flow point and adjust to the corresponding flow point

7. Wait for the flow to reach the position of the meter. For example, open valve 3 when verifying Q1, and then wait for the volume to reach 10L.And read the final value V2 of the checked table

8. Read the value Vi on the standard gauge

9. Calculation error
