| Voltage Range: | 4*300V/100VA | Current Range: | 6*30A/450VA |
|---|---|---|---|
| Frequency: | Up To 1000HZ | DC: | Up To 300V |
| Voltage Accuracy: | 0.05% | Current Accuracy: | 0.1% |
| Highlight: | IEC61850 Protective Relay Test Equipment,Multifunctional Protective Relay Test Equipment,IEC61850 protective relay test set |
||

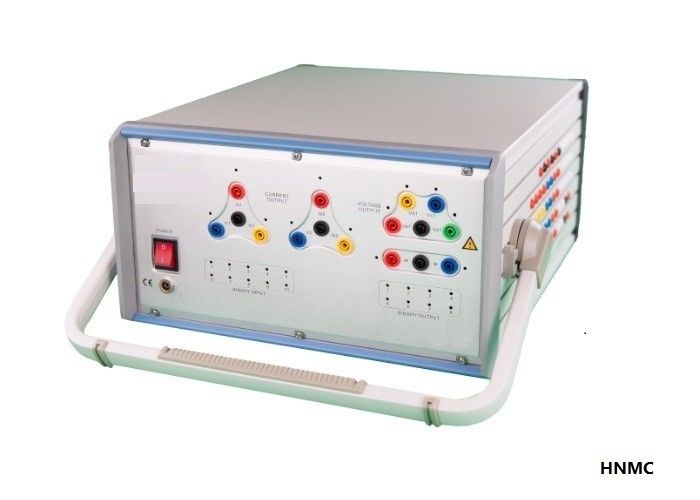

IEC61850 Protective Relay Test Equipment Multifunctional Kit (digital)
MC3000F Optical digital relay protection tester products using high-performance PowerPC processor, large-scale FPGA, Ethernet communication and other technologies, can support IEC60044-8(FT3), IEC61850-9-1, IEC61850-9-2 and GOOSE optical digital signal access,Provide complete test solution for IEC61850 relay protection device, IED, etc
The MC3000F is the integrate test system for protection relay testing and commissioning applications. Ability of testing conventional protective relay with analog voltage and current outputs, the MC3000F can also test IEC61850 complied digital protection devices and systems, such as simulating/subscripting GOOSE messages, publishing Sampled Values. The 12 low level analog output are provided for stimulating devices with low level inputs...
· 6 currents and 4 voltages
· big power and voltage accuracy 0.05% & current accuracy 0.1%
· Advanced modular Plug-in structure
· Full-auto testing with PC control software
· End to end test with GPS or IRIG-B
· Light weight, freindly to use
· 3 years free warranty
· IEC61850 testing capability
Specifications of IEC61850 Protective Relay Test Equipment (digital)
| Voltage | |
| Range | 4 x 300V / 100VA |
| Accuracy | error < 0.05 % rd.+ 0.01 % rg. typ. |
| Output time | continuous |
| Current | |
| Range | 6 x 30A / 450VA |
| Accuracy | error < 0.1 % rd. + 0.02 % rg. typ. |
| Output time | > 15 Sec. at 30A |
| Frequency | |
| Range | DC, 0.001Hz~1000Hz |
| Accuracy | ±1ppm |
| Resolution | 0.001Hz |
| Others | |
| Auxillary DC supply | 0-300V |
| Binary inputs | 8 |
| Binary outputs | 4 |
| Low level outputs | 12 |
| Time synchronization | GPS, IRIG-B |
| Weight | ≤16.5kg |
| IEC 61850 | |
| GOOSE simulation/subscription | |
| Sampled Value publishing | |
| Support FT3 protocol | |
