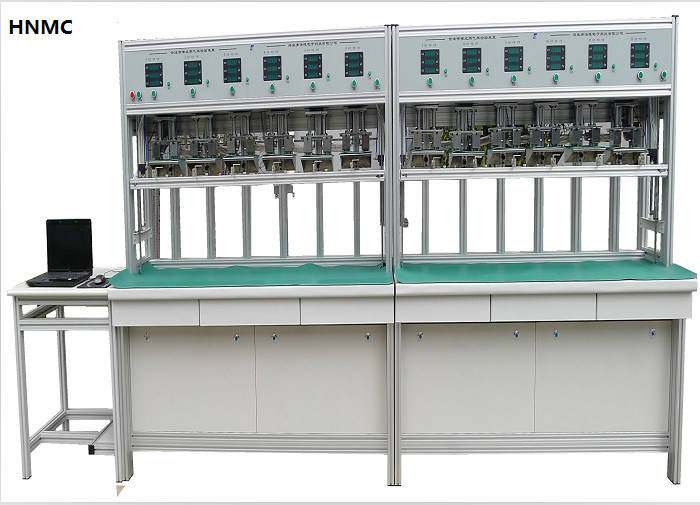

0.016 m3/h～6 m3/h Gas Meter Test Bench ( Domestic gas meter)
Gas Meter Test Bench MCGB001
Feature
1) Adopt Serial comparison method to test several different kinds of diaphragm gas meter.
2) Use VSBA Sonic nozzle to meet Qmax,0.2Qmax,Qmingas meter flow point measurement.
It is convenient to change and clean nozzle regularly. (patent No.:20110237008.6)
3) Could accurately test temperature, pressure etc. and calculate error in time, guarantee
device stable and accurate Ø
4) Adopt negative pressure method to ensure gas flow passed through to reach Critical flow state.
5) Test system could test automatically under control of PC software, meanwhile could save, print,
analyze and statistic etc.
6) Also test manually gas meter without cursor .
7) Graceful appearance, fine art-work,durable structure
0.016 m3/h～6 m3/h Gas Meter Test Bench ( Domestic gas meter)
Technical index of 12 positions Sonic nozzle gas meter verification device (domestic gas meter)
| Flow range | 0.016 m3/h～6 m3/h |
| Total uncertainty | ≤0.5% , k=2 |
| Negative pressure method | Test range of absolute pressure sensor 0～120kPa; |
| Working condition | |
| ambient temperature | (20±5)℃,relative humidity:(45～75)%RH. |
| test range of temperature sensor | (0—50)℃,accuracy ≤±0.2℃. |
| test range of humidity sensor | 0～100%RH |
| Gas meter Spec. | G1.6~G4.0. |
| Installation method | clip meter by pneumatic method, test 1-12 nos meter(diaphragm meter) for serial test. |
| Sampling method | collect automatically or manual reading input, data dealing automatically, record save, certificate and test report print, data inquiry |
| Micro differential pressure sensor test range | 500Pa～500Pa,accuracy≤0.5% |
| XO frequency accuracy for time record | ＜10-4, stability per day＜10-5 |
| Flow point | 0.016m3/h,0.025 m3/h,0.04 m3/h,0.5 m3/h ,0. 8 m3/h, 1.2 m3/h,2.5 m3/h,4.0m3/h flow point deviation≤5% |
| Power supply | AC 3*380V±20V ,50Hz |
Configuration 1( Domestic gas meter)
| Item | Origin | Qty |
| industrial aluminum operation platform (Domestic gas meter test bench) | China | 2 |
| pneumatic clipper | China | 12 |
| positioning seat | China | 12 |
| VSBA Sonic nozzle | China | 7 |
| back-pressure vessel | China | 1 |
| stagnation vessel | China | 1 |
| Left-right intake switching valve (electromagnetic pneumatic) | China | 4 |
| flow switching valve( electromagnetic pneumatic) | Japan | 7 |
| test control system | China | 1 |
| volume sampling and error calculation system | China | 12 |
| Photoelectric sampler | China | 12 |
| centralized elevation mechanical of photoelectric sampler | China | 2 |
| differential pressure transmitter | China | 12 |
| absolute pressure sensor | USA | 4 |
| data acquisition system | China | 12 |
| temperature sensor | Germany | 3 |
| error calculation acquisition system | China | 12 |
| free-oil vacuum bump | Japan | 1 |
| PC operation & data management software | China | 1 |
