| Output Voltage: | 0-50KV, 100KV (optional) | Output Current: | 0-0.1A |
|---|---|---|---|
| Measure Accuracy: | +/-1% | Input Voltage: | 220V+/-10% AC, 50/60HZ |
| Input Current: | 22.7A | Rated Output: | 0-250V |
| High Light: | 50KV Electrical Glove Testing Equipment,50KV 250V Electrical Glove Testing Equipment,0.1A 50KV high voltage glove testing |
||

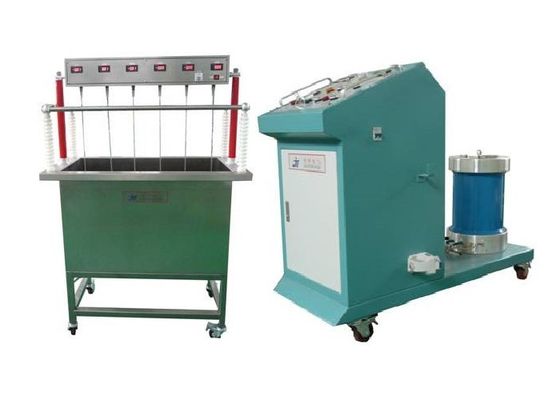

Insulation Glove Tester System MCJY100
High Voltage Testing Equipment 50KV/5KVA Isolated Glove(boot & blanket) Test System
1) Testing insulation glove & boot
2) Can test six glove & boot at the same time
3) Testing insulation stick & blanket by adding test frame & platform
4) Output voltage: 0-50KV. (optional: 100KV or more)
5) Measure accuracy: ±1%
6) Output current: 0-0.1A
Features
1) Used for testing insulation glove & boot, and test insulation stick & blanket by adding test frame & platform
2) Reasonable structure design and good enough protection
3) Adopting voltage divider and ensuring stable and accurate test
Technical Index
| Rated capacity | 5kVA |
| Input voltage | 220V±10% AC；50/60HZ |
| Input current | 22.7A |
| Output voltage | 0～50kV；(optional: 100KV or more) |
| Output current | 0～0.1A |
| Measurement accuracy | +1% |
| Withstand voltage time set | 0.01 sec.-99 hours 99 mins |
| Temperature range | -20℃ - +40℃ |
| Relative humidity | <80% |
System structure of Control system
Mechanical structure
1) Steel plate mould pressing casing , spraying plastics outside and in side；
2) Front and back ,can take off and adjustable door；
3) Slope type；
Voltage Regulator
| Rated Input | 220V 5kVA； 22.7A 50/60Hz |
| Rated output | 0～250V 5kVA； 0～20A 50/60Hz |
| Type of cooling | air cooling |
| Installation site | control panel inner |
Testing transformer
| Rated capacity & frequency | 5kVA 50/60Hz |
| Rated input voltage & current | 200V 25A |
| Rated output voltage & current | 50kV 0.1A |
| Short circuit impedance | ≤12% |
| Insulation level | under rated voltage 110%, withstand voltage one minute |
