Class 0.05 Portable Energy Meter Test Equipment

China Zhengzhou Great Electric Co.,Ltd. certification
I'm Online Chat Now

Class 0.05 Portable Energy Meter Test Equipment

Class 0.05 Portable Energy Meter Test Equipment
Class 0.05 Portable Energy Meter Test Equipment

Large Image :  Class 0.05 Portable Energy Meter Test Equipment

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: MCST01B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Accuracy Class: 0.05, 0.02 Current Range: 1mA-12A (direct Mode)
Current Range: 5A...2000A (clamp CT Mode) Voltage Range: 1-576V
Phase Angle Range: 0-360 Deg. (0 - ±180deg.) Phase Angle Resolution: 0.001°
Highlight:

IP67 Class 0.05 Portable Energy Meter Test Equipment

,

IP67 Portable Energy Meter Test 2000A Reference Meter Equipment

,

Class 0.05 2000A Reference Meter

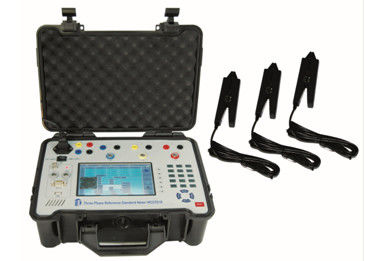

Three Phase Reference Standard Meter MCST01B

1) Accuracy class (optional): 0.1, 0.05, 0.02
2) Direct current: 1mA-12A
3) IP65 protection degree
4) Large LCD display, touch screen
5) Carrying black enclosure box, convenient for moving
6) Test set include: main device, optical sensor, test cables, clamp-on CT (optional),
    Rogowski Flexible coil (optional), communication cable, power cord, etc.

Technical Parameters


Current Measure
Direct mode range1mA-12A
Clamp-on CT range selectable5A, 100A, 300A…...2000A (optional)
Rogowski Coil mode selectable3000A…5000A…10000A (optional)
Accuracy

0.05% (10mA-12A)

0.2% (5A,100A,300A…2000A)

1% (3000A,5000A,10000A)

ResolutionHigh resolution, Six digits valid value
Voltage Measure
Range1-576V, maximum can be 600V
Accuracy0.05% (30-600V)
ResolutionHigh resolution, Six digits valid value
Power/Energy Measure
Accuracy (Active/apparent)

0.05% (10mA-12A)
0.2% (5A,100A,300A…2000A)
1% (3000A,5000A,10000A)

Accuracy (reactive)

0.1% (10mA-12A)
0.4% (5A,100A,300A…2000A)
2% (3000A,5000A,10000A)

ResolutionHigh resolution, Six digits valid value
Frequency measure
Range40-70HZ
Accuracy & Resolution±0.01HZ & 0.001HZ
Phase Angle Measure
Range0-360 deg. (0 - ±180deg.)
Accuracy±0.05°(current input>10%Ib)
Resolution0.001°
Power factor range0-1
CT/VT Secondary load test
Accuracy<±1%
Other parameters
Power supply

Auxiliary: AC 45-450V
Power supply from test circuit
Battery (optional)

Power consumption<13VA
Weight1.8-2.5KGS



Features

1) Can do the test of different single and three phase meters
2) Can test & display of meter error, voltage, current, power, power factor, energy, harmonics, frequency, etc
3) Can display voltage (P-N), voltage (P-P), current (P-P), each phase/total power & energy (P,Q,S),
    phase sequence, vector diagram, waveform, harmonics, distortion, spectrogram, and etc
4) Dial test/Real-burden test/Demand Test/CT ratio test/polarity test/CT secondary load test/VT secondary load test
5) Test of ambient conditions like temperature & humidity
6) Identification of various wrong wiring
7) Big data storage space
8) Support RS232/USB port
