Portable Transformer Test Equipment

Portable Transformer Test Equipment
Portable Transformer Test Equipment Portable Transformer Test Equipment Portable Transformer Test Equipment Portable Transformer Test Equipment

Large Image :  Portable Transformer Test Equipment

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: TTR2000A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 20-25 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Pcs per month
Detailed Product Description
Ratio Test Range: 0.8-20000 Test Accuracy: 0.5%, 0.2%
Power Supply: 220V+/-15% Weight: 2Kgs
Highlight:

Portable Transformer Test Equipment

,

USB Transformer Test Equipment

,

0.2% transformer ratio test

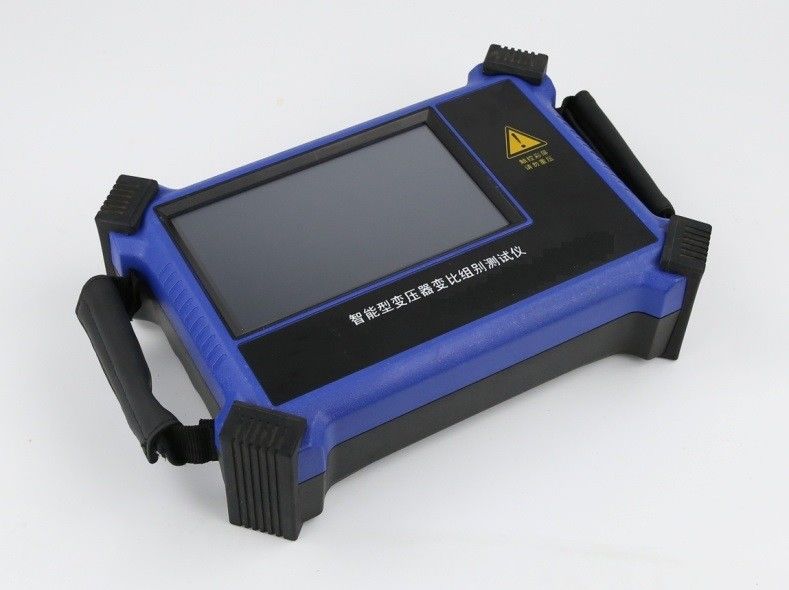

Portable Transformer Ratio Test Set TTR2000A



Main Features
1. The tester makes automatic measurement with no need to set any parameters and automatically

   completes the three-phase ratio and connection group measurements with easy operation.

   All you need to do is to press a button.
2. The tester measures three-phase and single-phase transformer ratios automatically,

   and calculates the ratio error.
3. The tester has inner three-phase signal source, which can make measurement of Y / y, Y / d, D / y, D / d,

    ZN / y, ZN / d, rectifier transformer, traction transformer and all kinds of ratios of transformer connection groups.
4. The tester can measure transformer connection group label and polarity to clearly display the first and

    second winding connection vector.
5. The tester can track the transformer on-load tap-changer position automatically, and indicate the current

    tap point automatically.

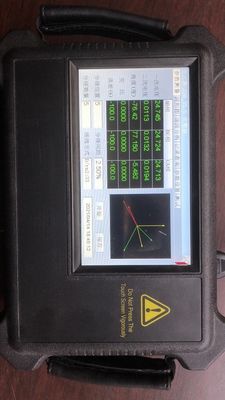

6. The tester can display a transformer’s first and secondary voltage Oscillograms and phase relationship.

    It can measure transformer’s first and second harmonic voltages, to facilitate the analysis of transformer failure.
7. The tester has perfect and reliable automatic protection, to ensure the intactness of the tester under abnormal conditions.
8. The tester is has small size and light weight. It makes accurate measurement at fast speed (about 3 seconds to complete the test).
9. The tester is available to store and print all the test results. It has Built-in 128M memory (extendable to 4G memory card), available to export the database by USB, or upload to computer. The database supports excel spreadsheet opening, easy for edit or archive.

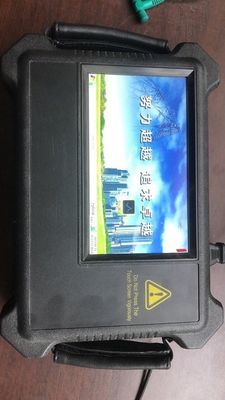

10. The tester has 5-inch true color touch screen operation, emwinGUI interface and Chinese input, which is easy and convenient. It also has no power-down calendar and clock function. The test time can be stored at any time.
11. The tester support on-site record print by Bluetooth or serial printer.



Technical Index

Item Technical Index
Ratio measurement range 0.8-20000
Ratio measurement accuracy 0.2% (0.8-2000), 0.5% (2000-20000)
Input voltage HV side AC 24V, LV side AC 4V
Working power AC220V ± 15%
Operating temperature -10 ℃ -40 ℃
Environmental humidity 10% -85%
Volume 270 × 190 × 70mm
Weight 2kg (not including test wires)
