| Voltage Range: | 4*300V/100VA | Current Range: | 6*30A/450VA |
|---|---|---|---|
| Frequency: | Up To 1000HZ | DC: | Up To 300V |
| High Light: | 1000HZ 0.05% Protective Relay Test Equipment,1000HZ Protective Relay Test Equipment,1000HZ IEC61850 relay test kit |
||

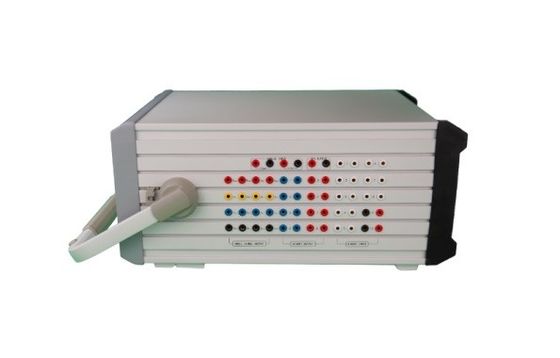

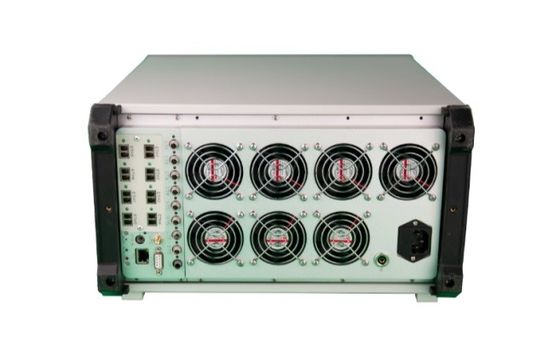

Advanced Multifunctional Relay Test Set
The MC3000F is the all-in-one test system for protection relay testing and commissioning applications. In addition to the ability of testing conventional protective relay with analog voltage and current outputs, the MC3000F can also test IEC61850 complied digital protection devices and systems, such as simulating/subscripting GOOSE messages, publishing Sampled Values. The 12 low level analog output are provided for stimulating devices with low level inputs.
· Six currents and four voltages
· High power and high accuracy
· Advanced modular Plug-in structure
· Full automated testing using PC control software
· End to end test with GPS or IRIG-B
· Light weight, easy to use
· 3 years free warranty
· IEC61850 testing capability
Specifications
| Voltage | |
| Range | 4 x 300V / 100VA |
| Accuracy | error < 0.05 % rd.+ 0.01 % rg. typ. |
| Output time | continuous |
| Current | |
| Range | 6 x 30A / 450VA |
| Accuracy | error < 0.1 % rd. + 0.02 % rg. typ. |
| Output time | > 15 Sec. at 30A |
| Frequency | |
| Range | DC, 0.001Hz~1000Hz |
| Accuracy | ±1ppm |
| Resolution | 0.001Hz |
| Others | |
| Auxillary DC supply | 0-300V |
| Binary inputs | 8 |
| Binary outputs | 4 |
| Low level outputs | 12 |
| Time synchronization | GPS, IRIG-B |
| Weight | ≤16.5kg |
| IEC 61850 | |
| GOOSE simulation/subscription | |
| Sampled Value publishing | |
| Support FT3 protocol | |
