Product Details:
Payment & Shipping Terms:
|
| MAX Output Voltage: | 6×150V , 3×300V , 1×900V | MAX Output Power: | 6×75VA Or 3×150VA |
|---|---|---|---|
| Accuracy: | ≤0.2% | Harmonic Distortion: | ≤0.2% |
| DC MAX Output Current: | 6×35A , 3×70A , 1×180A | DC MAX Output Power: | 6×300VA, 3×600VA , 1×1800VA |
| Touching Screen LCD: | 8.4`` | USB Port: | One , USB2.0 |
| Highlight: | LCD Relay Test System,0.2% Relay Test System,PC protective relay tester |
||

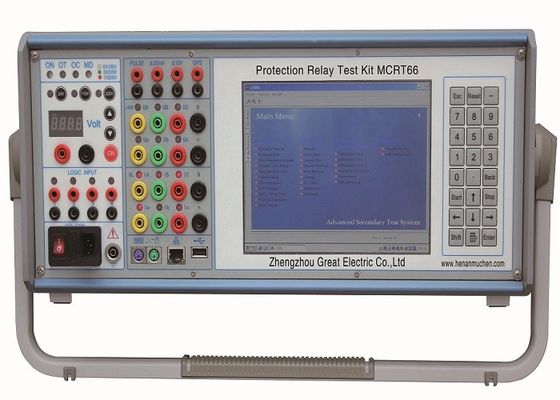

Protection Relay Test Kit MCRT66
6×150V , 3×300V , 1×900V Portable Universal Protection Relay Test Equipment
Features
6×150V , 3×300V , 1×900V Portable Universal Test Equipment
Technical Index
| AC voltage source | MAX output voltage | 6×150V , 3×300V , 1×900V |
| MAX output power | 6×75VA or 3×150VA | |
| resolution | 5mV | |
| Accuracy | ≤0.2% | |
| Harmonic distortion | ≤0.2% | |
| Other | ||
| AC current source | MAX output current | 6×35A , 3×70A , 1×180A |
| MAX output power | 6×300VA, 3×600VA , 1×1800VA | |
| resolution | 1mA | |
| Accuracy | ≤0.2% | |
| Harmonic distortion | ≤0.2% | |
| Other | Output amplitude/frequency/phase of each phase can be adjustable independently, and with open circuit protection and over load protection | |
| DC Voltage | MAX output voltage | 6×150V , 3×300V , 1×900V |
| MAX output power | 6×75W ,3×150W | |
| Accuracy | ≤0.2% | |
| Other | Short circuit,over-current protection | |
| DC current | MAX output current | 6×35A , 3×70A , 1×180A |
| MAX output power | 6×300W , 3×600W , 1×1800W | |
| Accuracy | ≤0.2% | |
| Other | Open circuit, over-load protection | |
| AUX DC voltage | Output |
0～250V continuously adjustable; Fast switch between 24,110V,220V; |
| other | Short circuit,over-load protection | |
| Phase | range | -360°～ +360° |
| accuracy | 0.01° | |
| frequency | range | DC 10～1000Hz |
| resolution | 0.001Hz | |
| drifting | 5ppm | |
| Quantities | 8 pairs | |
| Response time | 50μs | |
| timing range | 1ms～999,999.999s | |
| Input way | Idle contact or Potential automatic identification,withstand voltage 250V | |
| Other | Auti-shake time adjustable | |
|
Binary output |
Quantities | 4 pairs |
| Output way | Idle contact, withstand voltage 250V ,capacity 250VA | |
| DC measurement (transducer calibration) | Voltage | one group, input±10V, accuracy <0.05% |
| Current | one group, input ±20mA,accuracy <0.05% | |
| impulse | Max receivable frequency 30KHz | |
| Energy Meter Calibration | Type of meter under test | Electromechanical & Electronic |
| Pulse Range | Maximum frequency 2MHZ | |
| Test Function | Error test | |
| Configuration | 1 No optical sensor | |
| Key board | In-built | 24 keys |
| external | RS232 port | |
| Display screen | size | 8.4 `` |
| resolution | 800×600 | |
| color | TFT | |
| Touching screen LCD | 8.4`` | |
| Mouse | PS/2 port | |
| USB port | One , USB2.0 | |
| Web port | one | |
| size | 471mm×192mm×363mm | |
| weight | 18.7 kgs | |
| Power Supply | Single phase AC 90-260V, 50/60HZ, 3KW/15A | |
