300V Calibration And Testing Of Single Phase Energy Meter

300V Calibration And Testing Of Single Phase Energy Meter
300V Calibration And Testing Of Single Phase Energy Meter

Large Image :  300V Calibration And Testing Of Single Phase Energy Meter

Product Details:
Place of Origin: China
Brand Name: HNMC
Model Number: SYS12 series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 4-8weeks
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detailed Product Description
Test Function: Meter Basic Error, Start Test, Creep Test..... Application Field: Meter Producer, Utilities, Lab
Accuracy Class: 0.05, 0.1 Standard Meter Accuracy: 0.02%, 0.05%
Voltage Range: 1-300V Current Range: 1mA-120A
Power Supply: 220V Or 3×220V/380V±10%, 50/60Hz±10% Frequency: 45-65HZ
High Light:

300V Calibration And Testing Of Single Phase Energy Meter

,

Calibration And Testing Of Single Phase Energy Meter

,

65Hz energy meter test

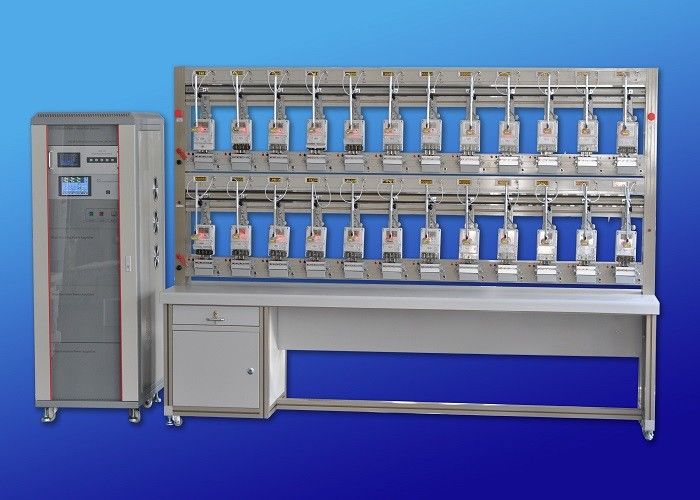

Single Phase Meter Test Bench SYS12 series



  • Meter position numbers optional: 3…….48
  • Error Test, Creep test, warm up test, start test, dial test, Standard Deviation Test,etc
  • Harmonic test 2-21 times with analysis & display
  • Each position constant can be different
  • Fully automatic operation by PC software and manual operation by touch screen





Technical Parameter

Accuracy class

0.02 (standard meter 0.05 class)

0.05 (standard meter 0.02 class)

Output Voltage
Range 1-300V (P-N)
Resolution 0.01%
Distortion <0.5%
Stability <0.05%
Capacity ≥ 25VA/position (depend on positions quantity)
Current output
Range 1mA~ 120A
Resolution 0.01%
Distortion <0.5%
Stability <0.05%
Capacity ≥ 50VA/position (depend on positions quantity)
Phase angle
Adjustment range 0° ~ 360°
Resolution 0.01°
Frequency
Range 45-65HZ
Resolution 0.01HZ
Other parameters
Insulation between Voltage circuits vs. Current circuit, between circuits vs. Earth ≥ 5MΩ
Power supply 220V or 3×220V/380V±10%, 50/60Hz±10%



Single Phase Meter Test Bench SYS12 series



Features

1) Measurement of voltage, current, power (active, reactive, apparent), phase angle and frequency with

    real time display of vector diagram

2) Able to test all types of single phase mechanical meters and electronics meters, able to test close-link

    meter, able to test meters with RF communication module with protocol provided by end user

3) There are error calculation reset buttons in error testing panel of each meter position; error of each meter

     is shown on LED display timely.

4) Quick connector device (QCD) for quick connect the meters on the rack

5) Soft start/stop output voltage/current

6) Black mark search & capture for the rotation disk

7) Can save test records, inquiry and print of test results and also can change format of test data

8) Register testing function, apply for testing various kinds of electronics meters

9) Powerful PC software (communication by RS232) for data analyzing, waveform playback and detailed

    report exportation

10) Smart solutions for calibration with updateable software

11) Universal barcode input, and supports self-defined barcode

12) Protection: current open-circuit, voltage short-circuit and malfunctions, Auto protection & auto restore,

      optional modular for temperature monitor

13) Auto short-circuit function if meter absence



Single Phase Meter Test Bench SYS12 series

Configurations



1. Single phase Power source (PS)

2. Single phase Standard reference meter (SRM), class 0.05 (or class 0.02 or 0.1 on demand)

3. The Rack

     Number of positions: Customizing on demand by end-user (3,6, 10, 12, 20, 24, 30, 48 ...positions)

     Each rack equip 1 emergency STOP switch

     Each posistion consist of: 1 QCD 3 pins + 1 scanning head + 1 meter clamping + 1 RS/232or485

     communication port + 1 error display + 1 RESET button + 1 Set of voltage cable

     Short connection cables over empty positions

4. PC Control software

5. Serial server (optional)

6. Manual control by touch screen

7. Optional

    MSVT (Multi-secondary voltage transformer) purpose to test the meters with close-link circuit

    Personal Computer

    Printer
