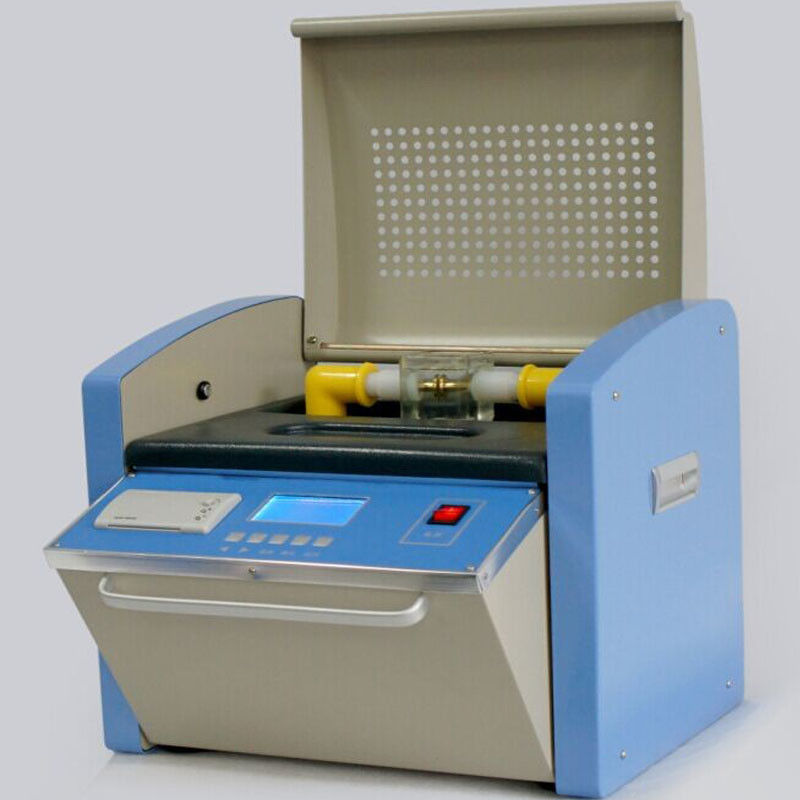

Transformer Oil Dielectric Strength Test Kit

Transformer Oil  Dielectric Strength Test Kit
Transformer Oil  Dielectric Strength Test Kit

Large Image :  Transformer Oil Dielectric Strength Test Kit

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Composite Board package
Delivery Time: 20-25 days
Payment Terms: T/T
Detailed Product Description

Insulation Oil Dielectric Strength Test Kit



Features

  • With microprocessor, automatically fulfill the test for oil circulation with a range of 0~80KV
  • Large screen LCD display
  • Automatically complete withstand-voltage test of oil after simple setting
  • Can save breakdown voltage value (1 to 6 times) and recurrent times
  • With in-built thermal printer, which can print each breakdown and average voltage value
  • Can save 100 pcs test results
  • Can display current ambient temperature and humidity
  • Adopt a single-chip microcomputer to boost the voltage at an even speed.
  • Equipped with over-voltage, over-current and limit protections to ensure the safety of operators
  • With the function of displaying the measured temperature and system clock.
  • Communicate with computer with a standard RS232 interface

Applications
Testing of insulating liquids in transformers, bushings, switchgear, capacitors and hydraulics

Major Technical Index

  • Output voltage: 0~80KV (100kv optional)
  • Voltage distortion rate: <3%
  • Voltage rising speed: 0.5~5KV/S (adjustable)
  • Standing time: 15min (adjustable)
  • Boosting interval: 5 min (adjustable)
  • Boosting frequency: 1~6 time(s) (optional)
  • Booster capacity: 1.5KVA
  • Measuring accuracy: ±3%
  • Supply voltage: AC240V±10% 50Hz±1Hz
  • Power consumption: 200W
  • Oil volume:400 ml
  • Applicable temperature: 0℃~45℃
  • Applicable humidity: <75%RH

Overall dimension: 465×385×425
